· 3.5-inch 480*320 Screen
· Scene Control & Security Alarm
· Theme and Screen Saver
· Customizing Physical Buttons

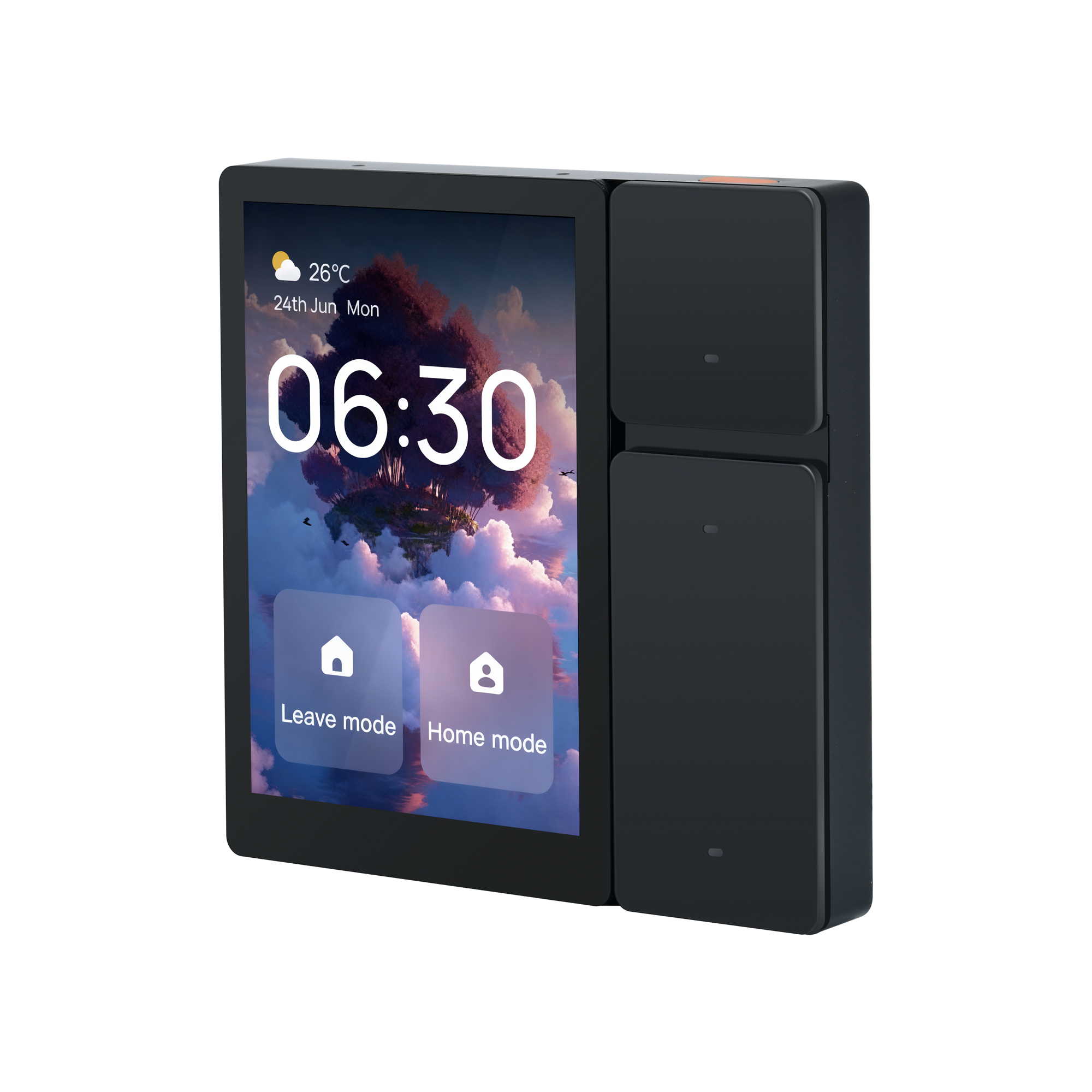

| Smart Control Panel MiNi | |
| Display | 3.5-inch IPS MIPI screen |
| Screen Type | Touch Screen |
| Screen Resolution | 480x 320 |
| Main Chip Model | RK3308B-S |
| Main Chip Frequenc | 1.3GHz |
| Main Chip Architecture | Quad-core ARM Cortex™-A35 |
| Wi-Fi Type | Ulink 2.4GHz |
| Zigbee Type | Downlink Zigbee |
| Bluetooth Type | Downlink BLE/BLE-mesh |
| Flash | 256MB |
| DDR | 256MB |
| Input | 100-240VAC , 50/60Hz |
| Voice Control | Online Voice Control |
| Voice skills | Songs, smart home skill, weather, news and etc. |
| Microphone | 2 Mike |
| Speaker | 1 Speakers / 1W |
| Antenna | 2pcs / Built-in shell antenna |
| Operating system | Linux |
| OTA | Support |
| Operating Temperature | 0~40℃ |
| Dimensions | 86*86*36.3mm（With Base） |
