– 4-wire installation.
– Advanced motion detection feature.
– High-definition video output.
– Efficient snapshot and video recording abilities.
– Compatible with microSD cards (up to 128GB).
– Supports a maximum of 2 door stations, 2 CCTV cameras, and 6 indoor monitors.
| Basic | |

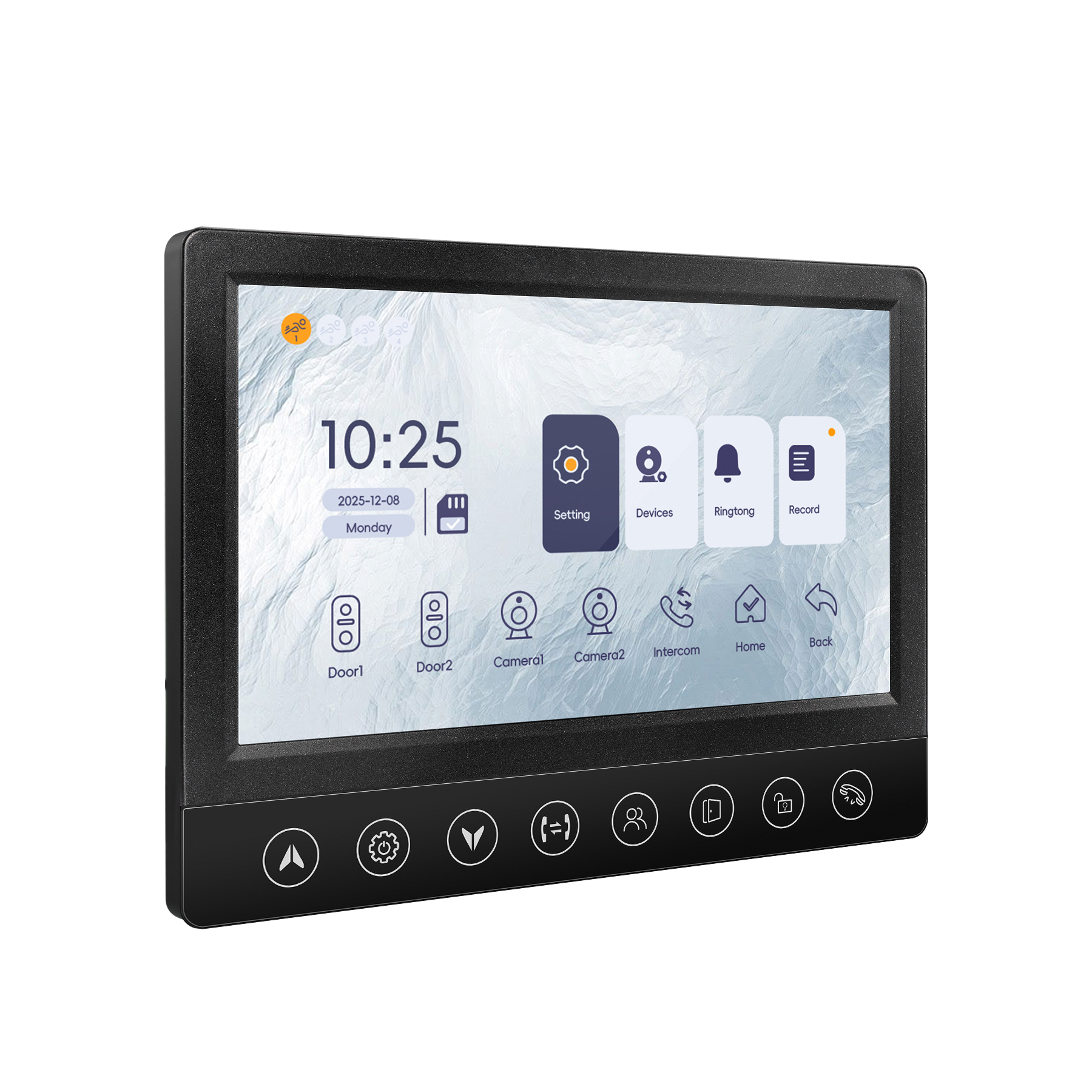

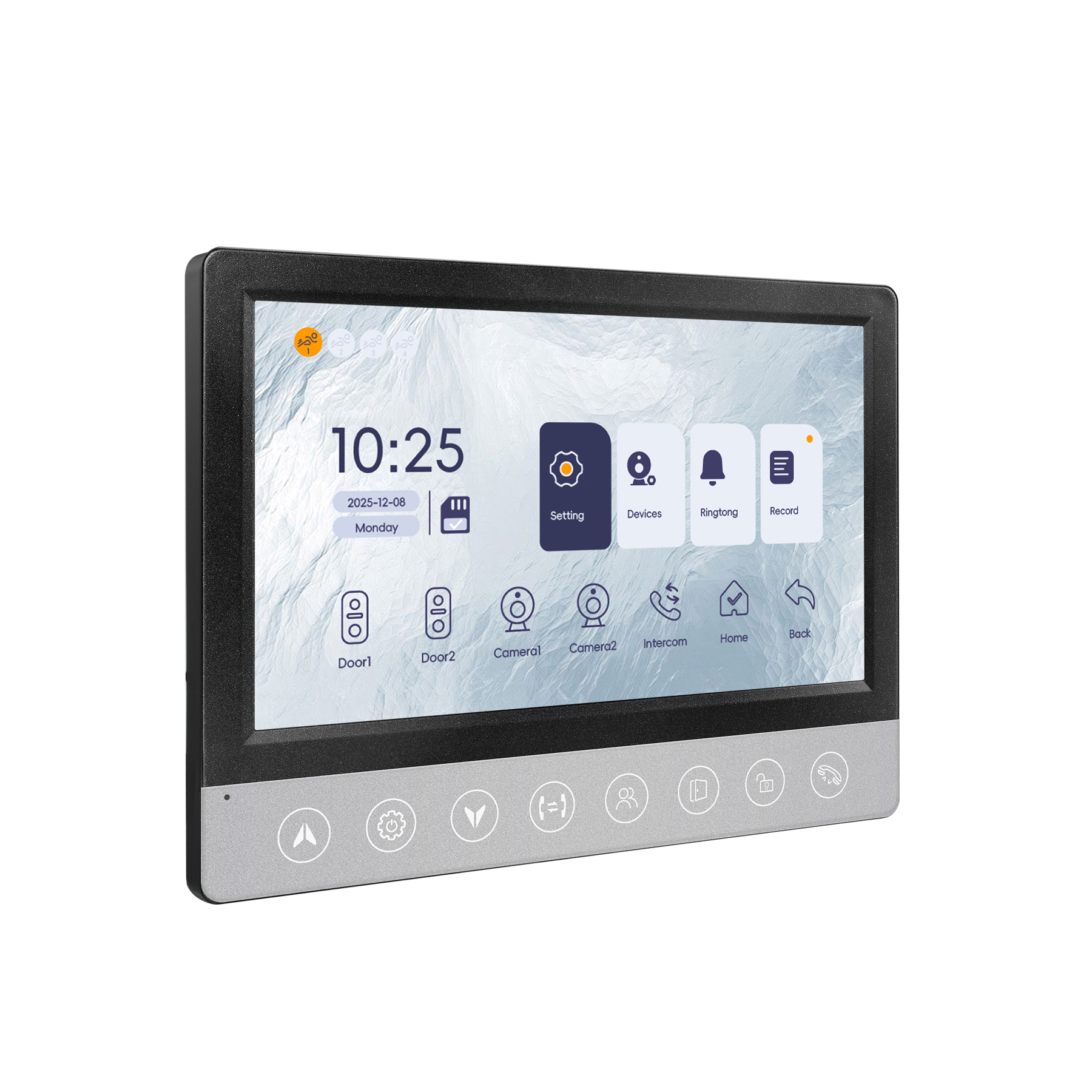

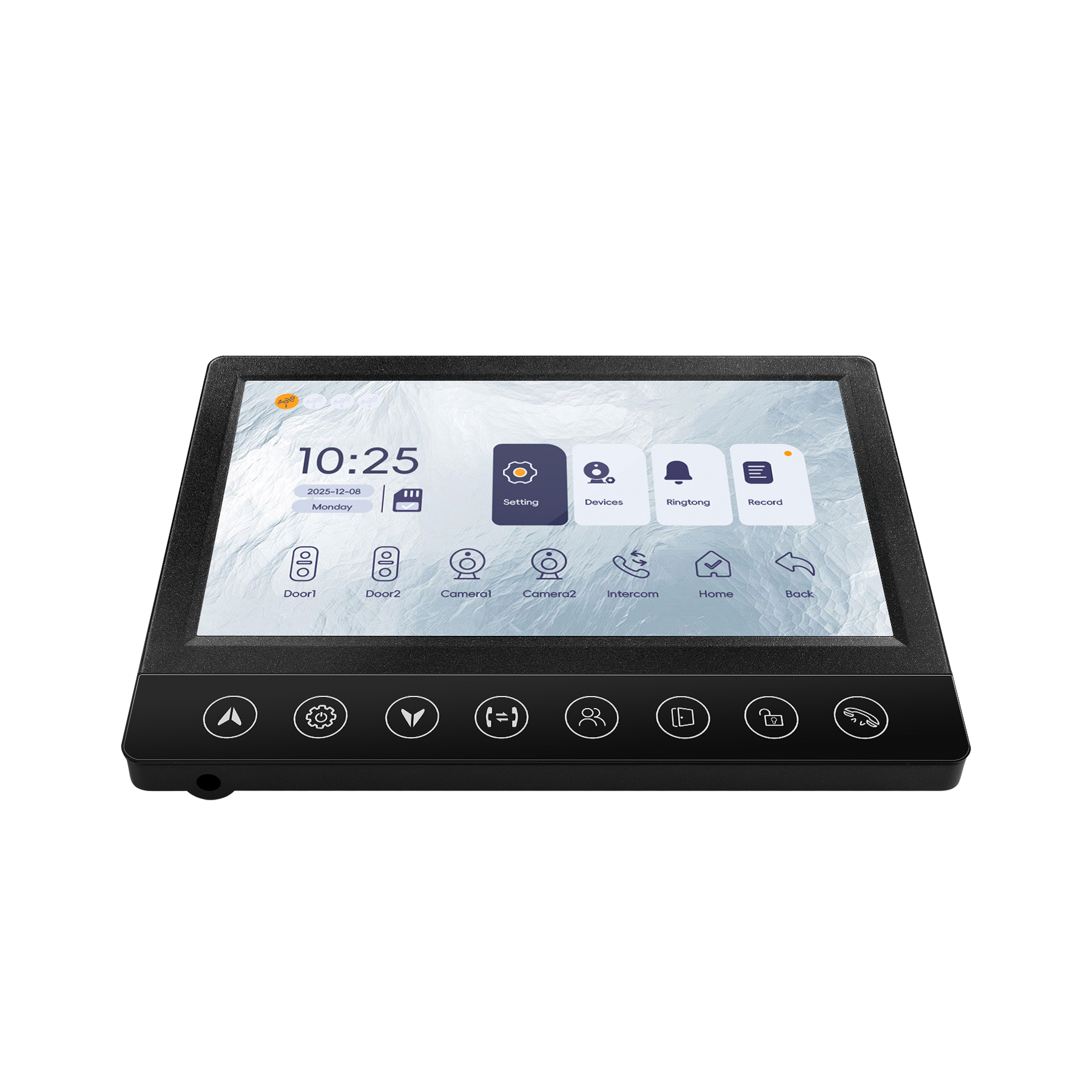

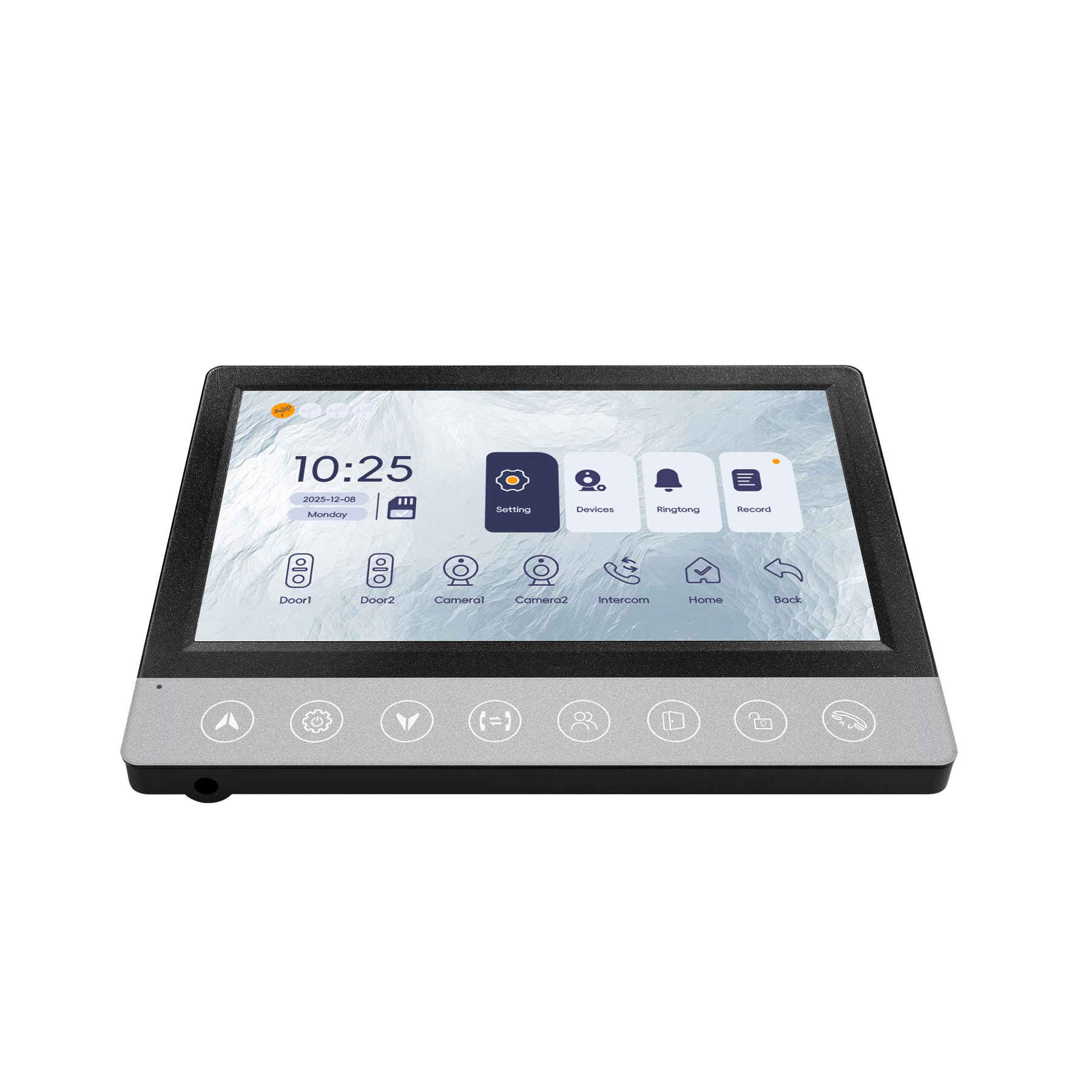

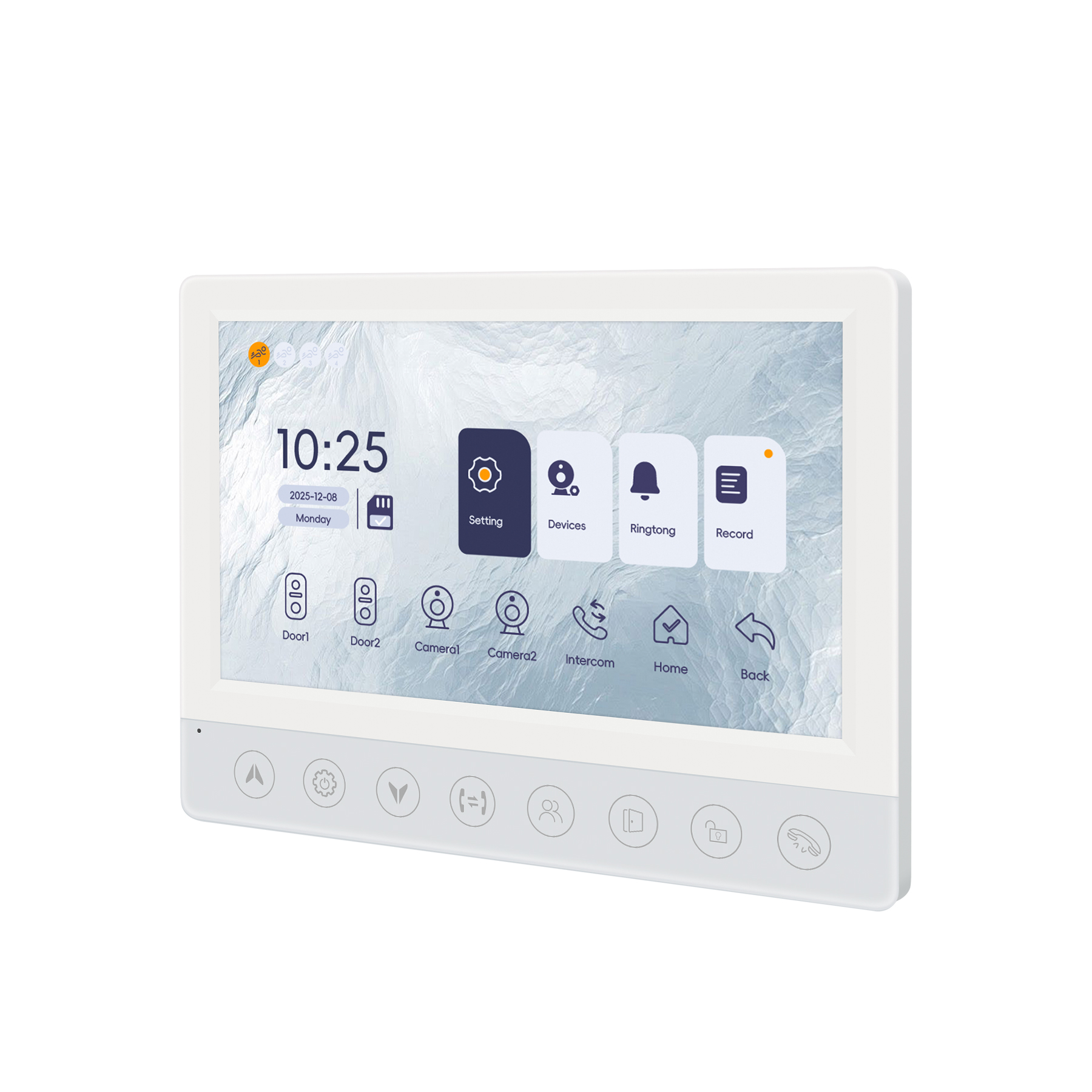

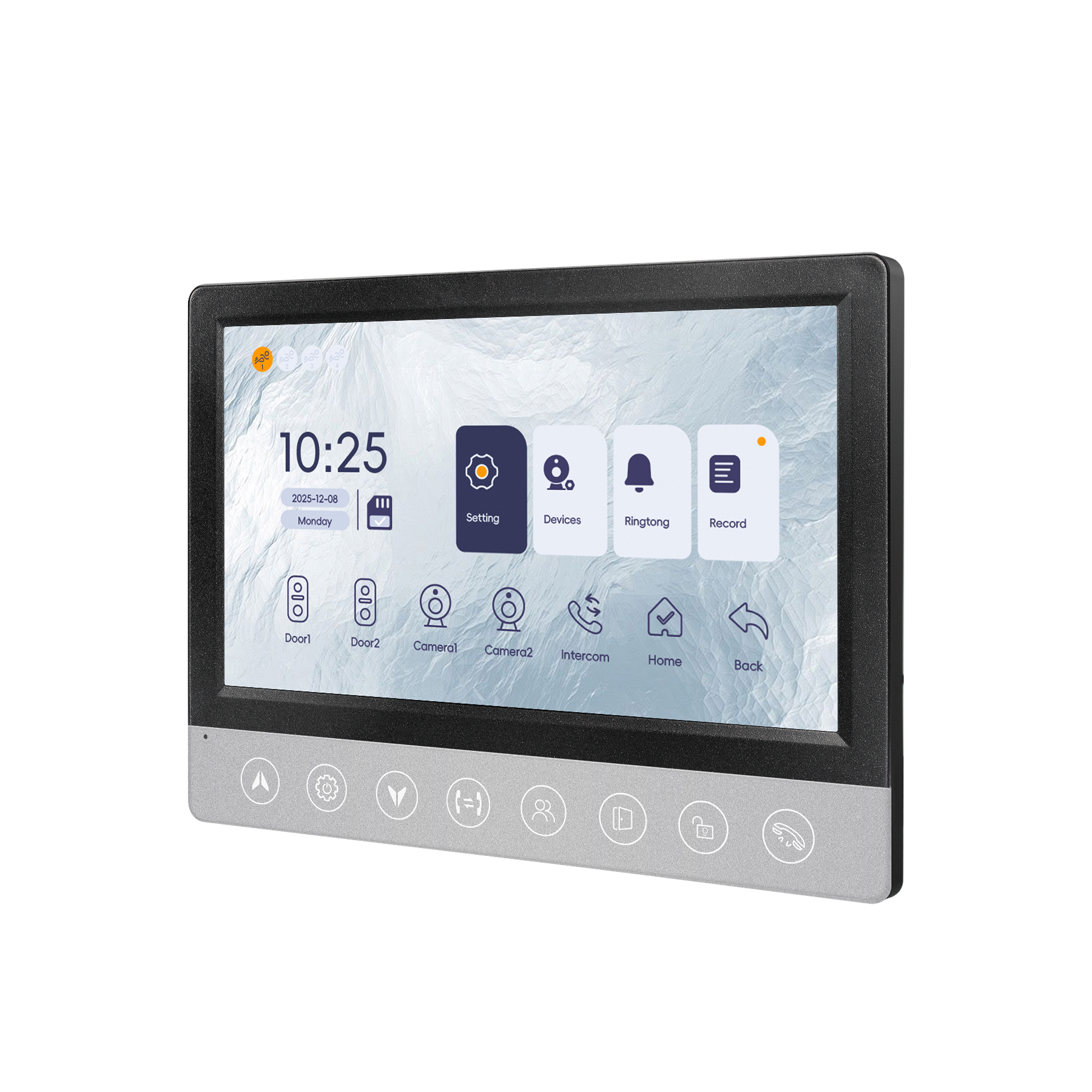

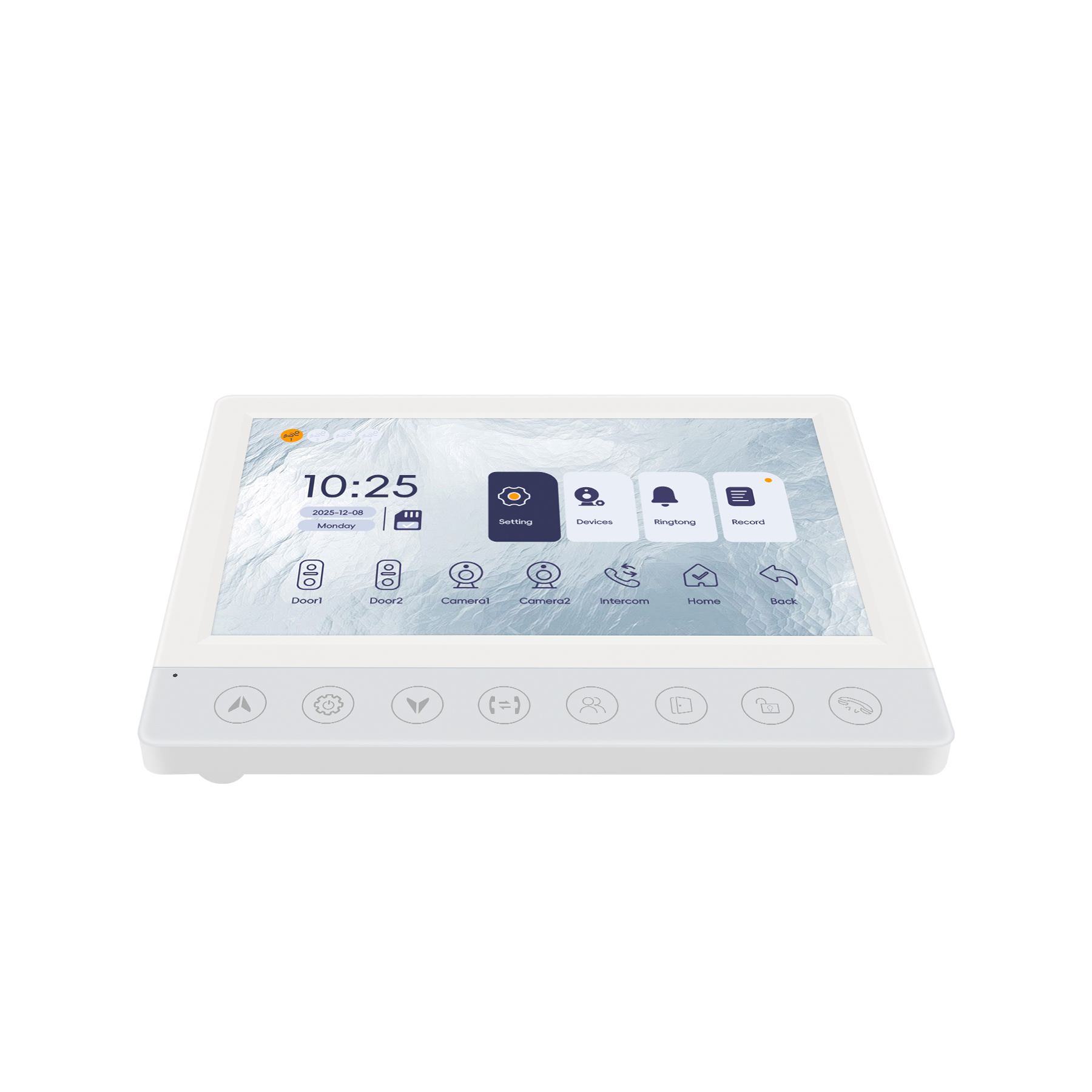

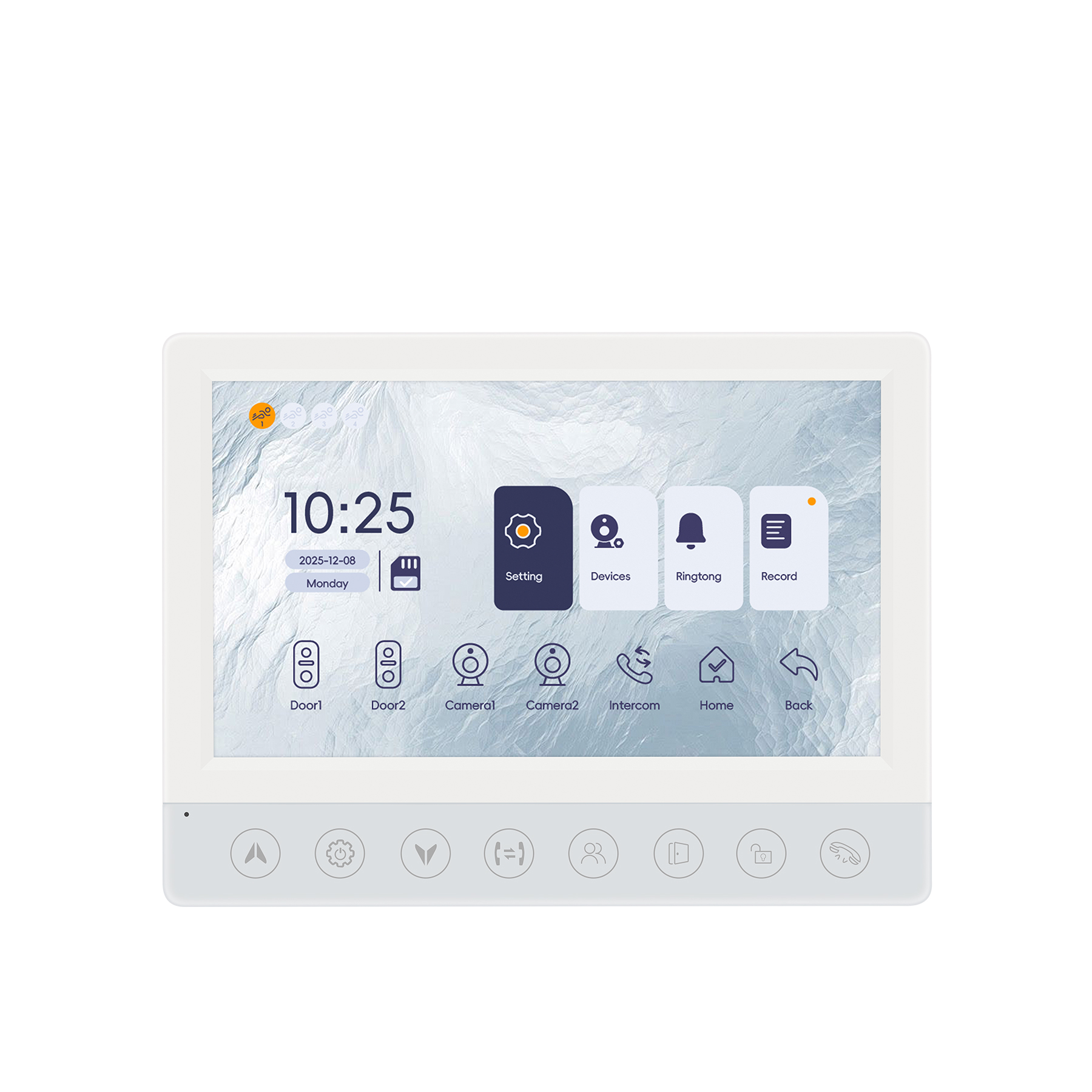

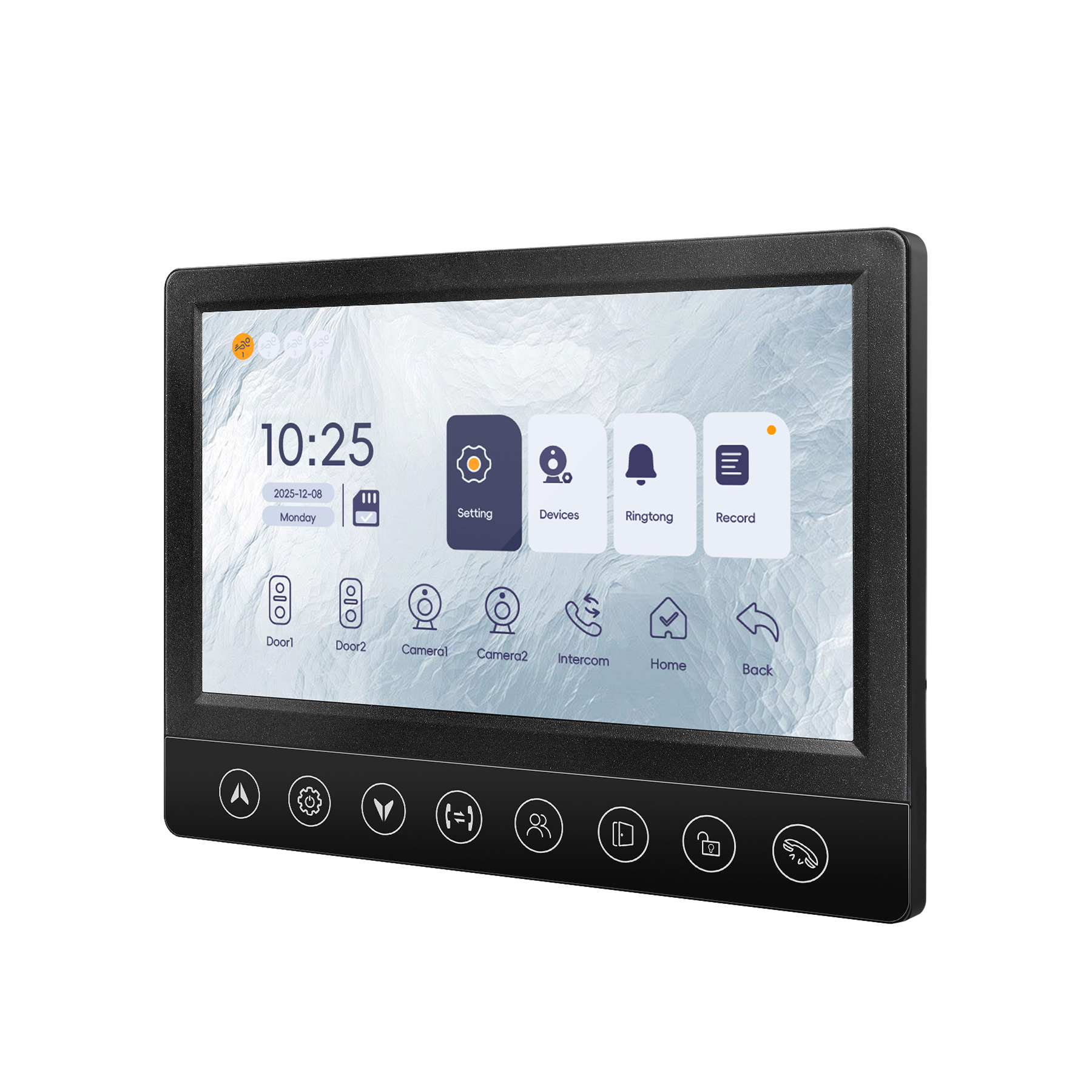

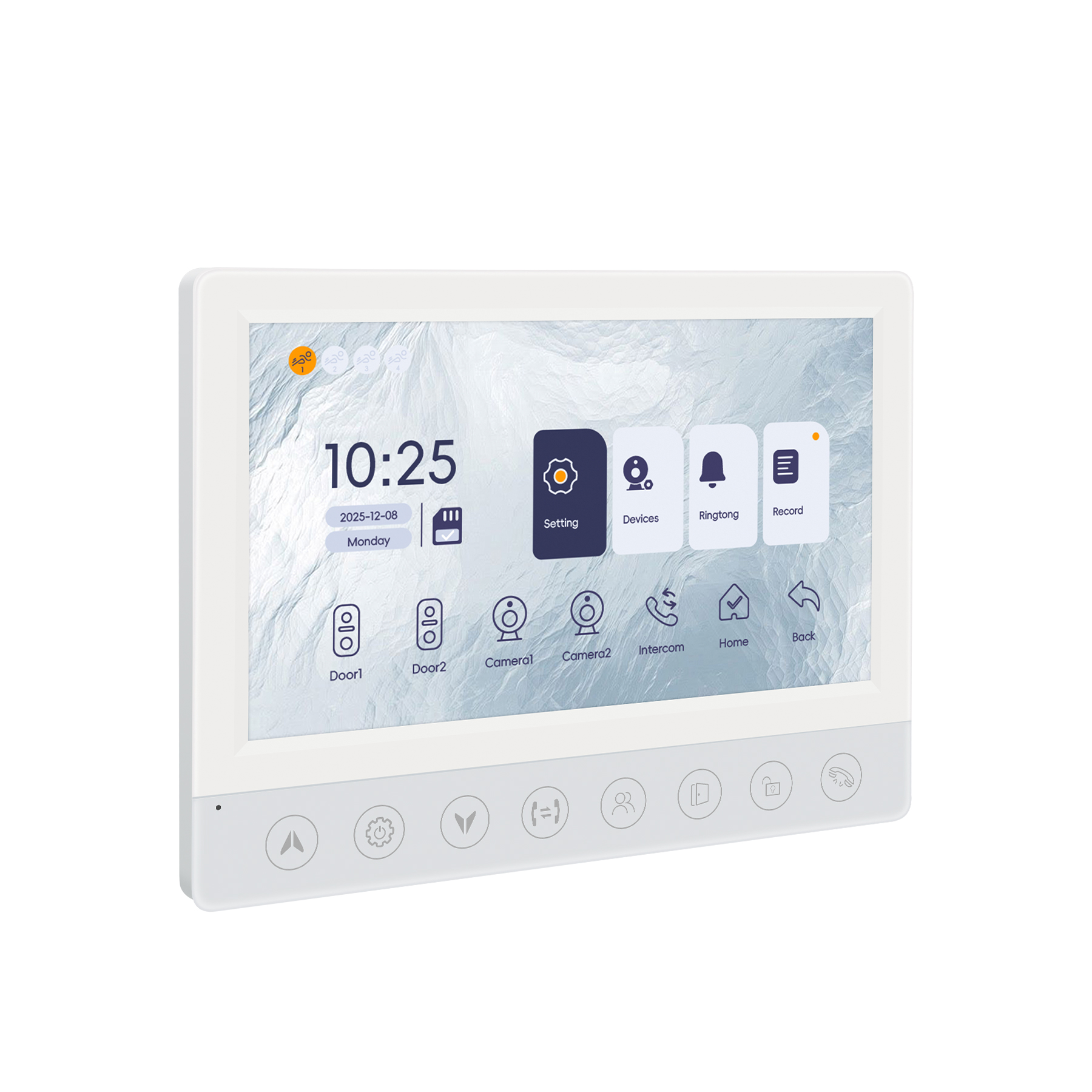

| Display | 7-inch IPS MIPI screen |
| Button Type | Sensor button |
| Screen Resolution | 1024 x 600 |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in speaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Mode | Half duplex talk |

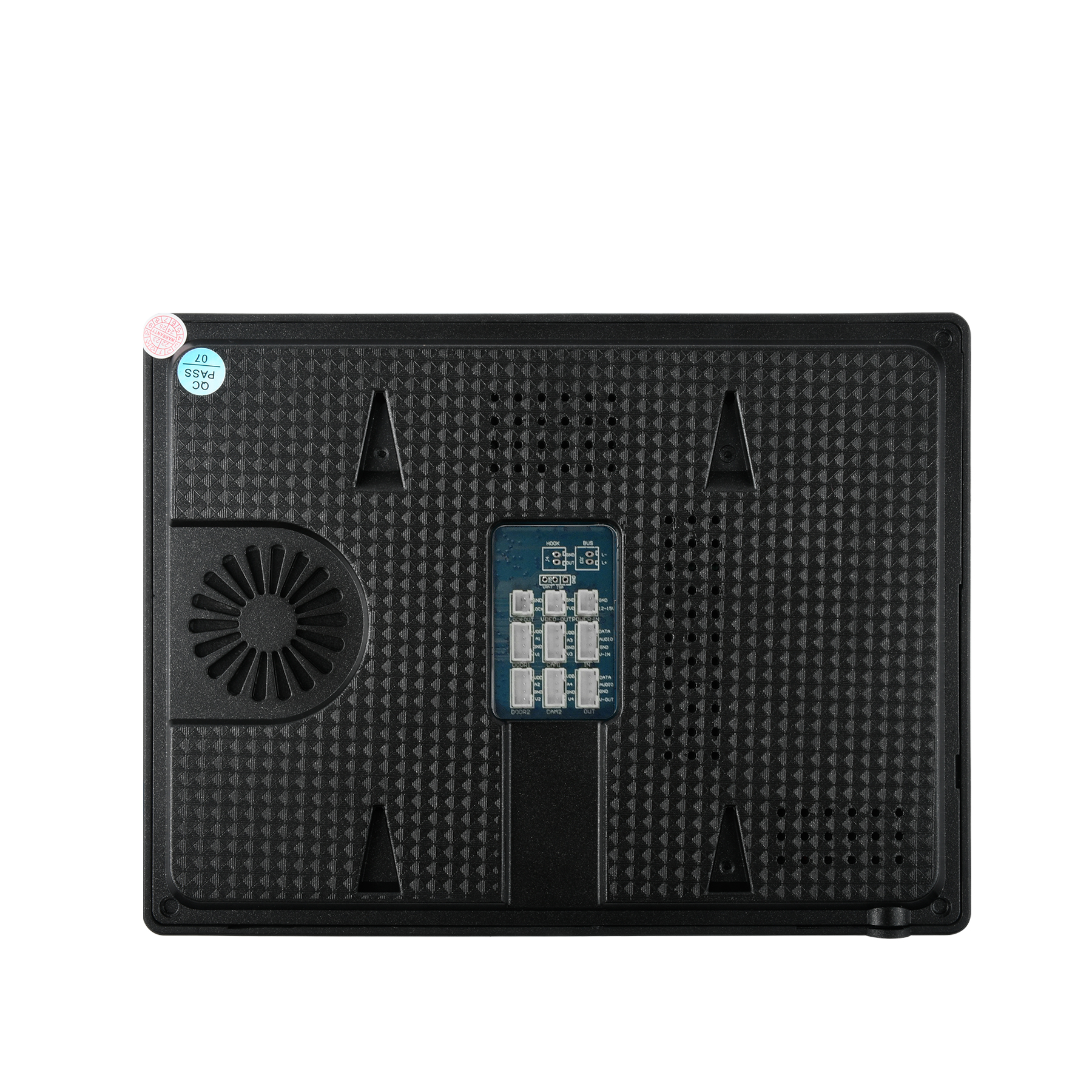

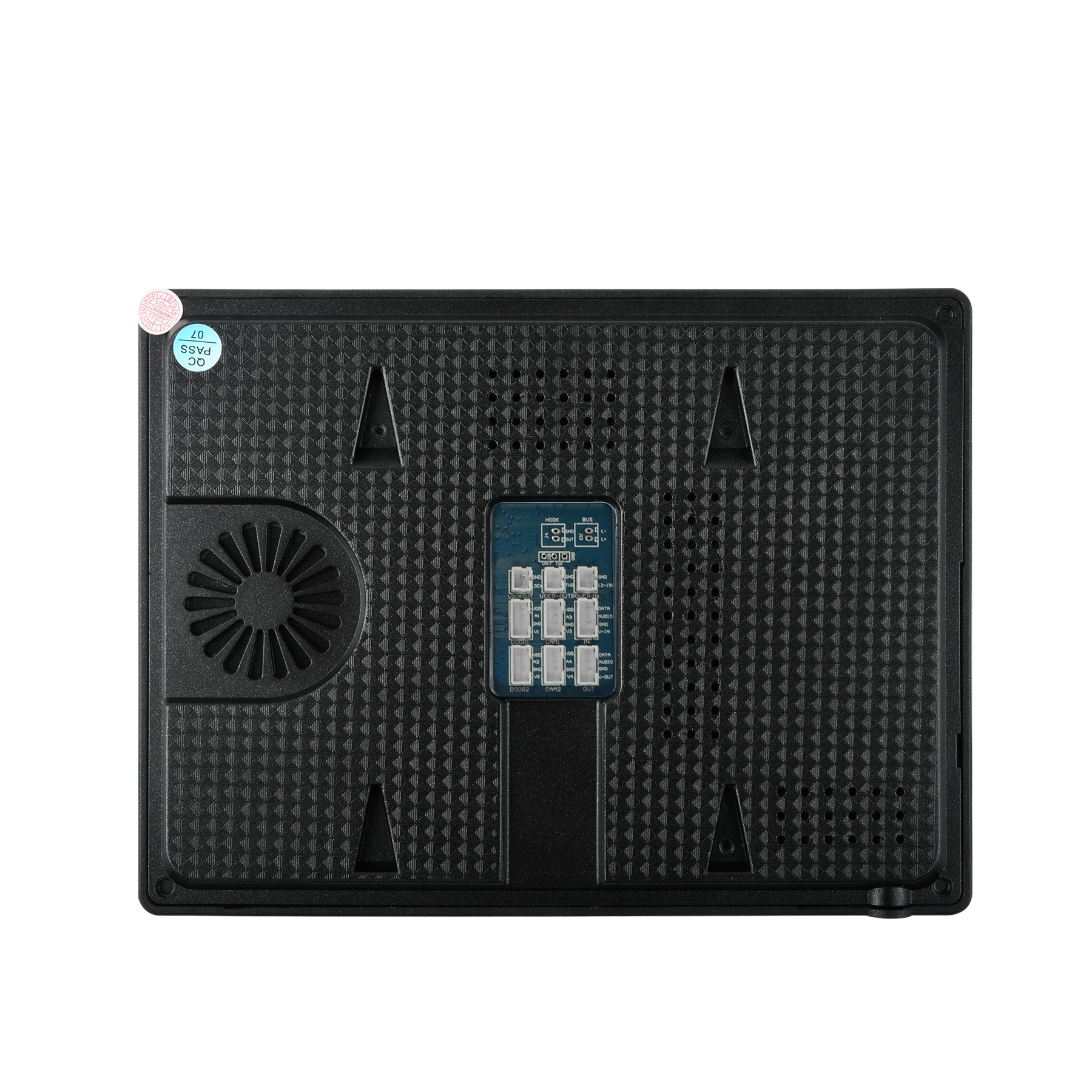

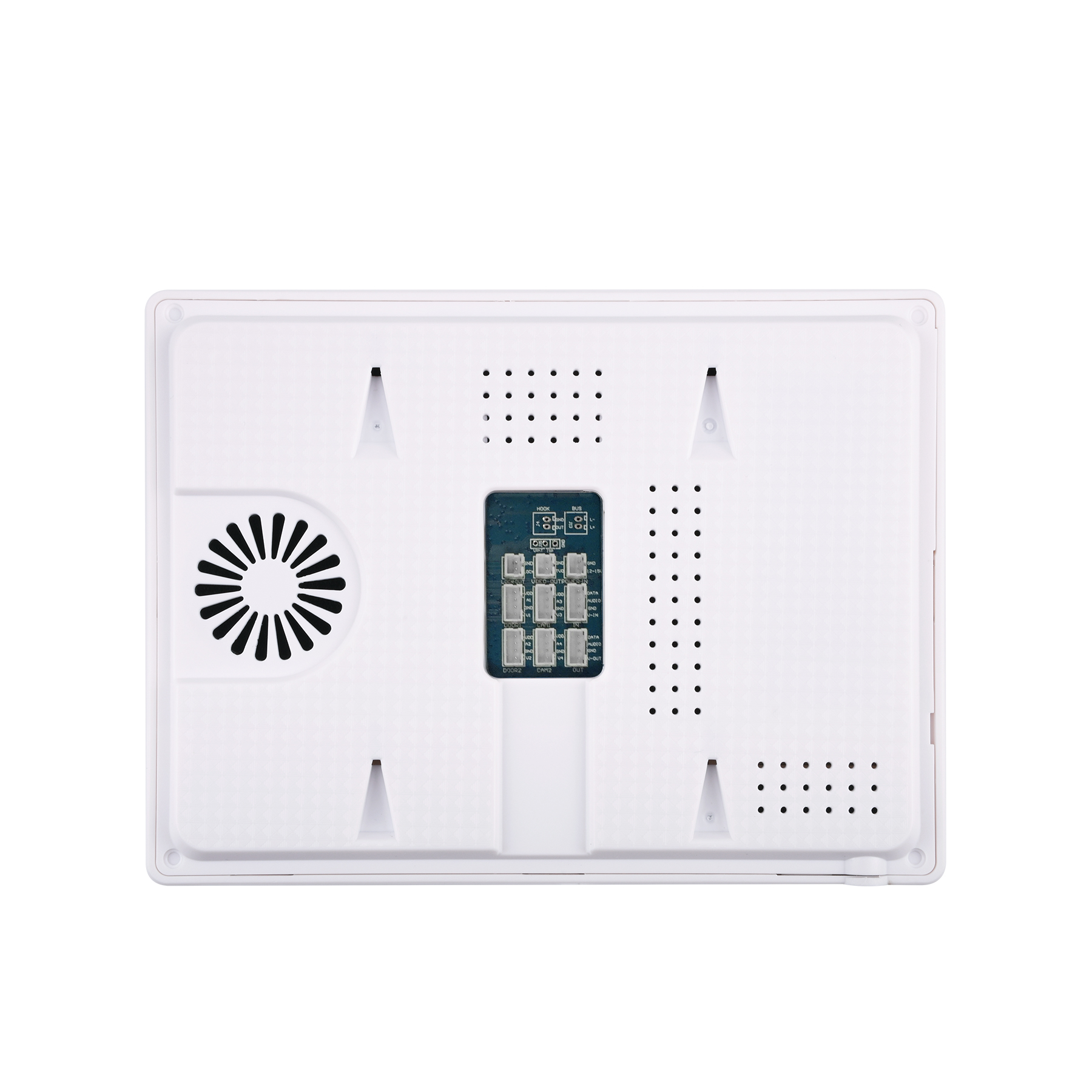

| Interface | |
| Door Station Interface | 2 |
| CCTV Camera Interface | 2 |
| Extension Interface | 2 |
| Gate Lock | 1 |
| Video Output | 1 |
| Power Interface | 1 |
| Storage | MicroSD card,max. 128GB |
| General | |
| Power | 12 VDC/2A; Built-in power supply:AC100-240V (Optional) |
| Power Consumption | Standby≤1.8W,Working≤3W |
| Working Temperature | -10℃ ~ 50℃ |
| Relative Humidity | 20%-95%(RH) |
| Certifications | CE;RED;RoHS |
| Material | ABS plastic |
| Installation | Surface mounting |
| Dimensions | 179*134*16.5mm |
| Language | English, Russian, (customizable) |
