· 4-wire installation.
· Advanced motion detection technology.
· Comprehensive multimedia functions.
· High-definition video output.
· Built-in photo frame feature.
· Efficient snapshot and video recording functions.
· Compatible with microSD cards (up to 128GB).
· Supports up to 2 door stations, 2 CCTV cameras, and 6 indoor monitors.
| Basic | |

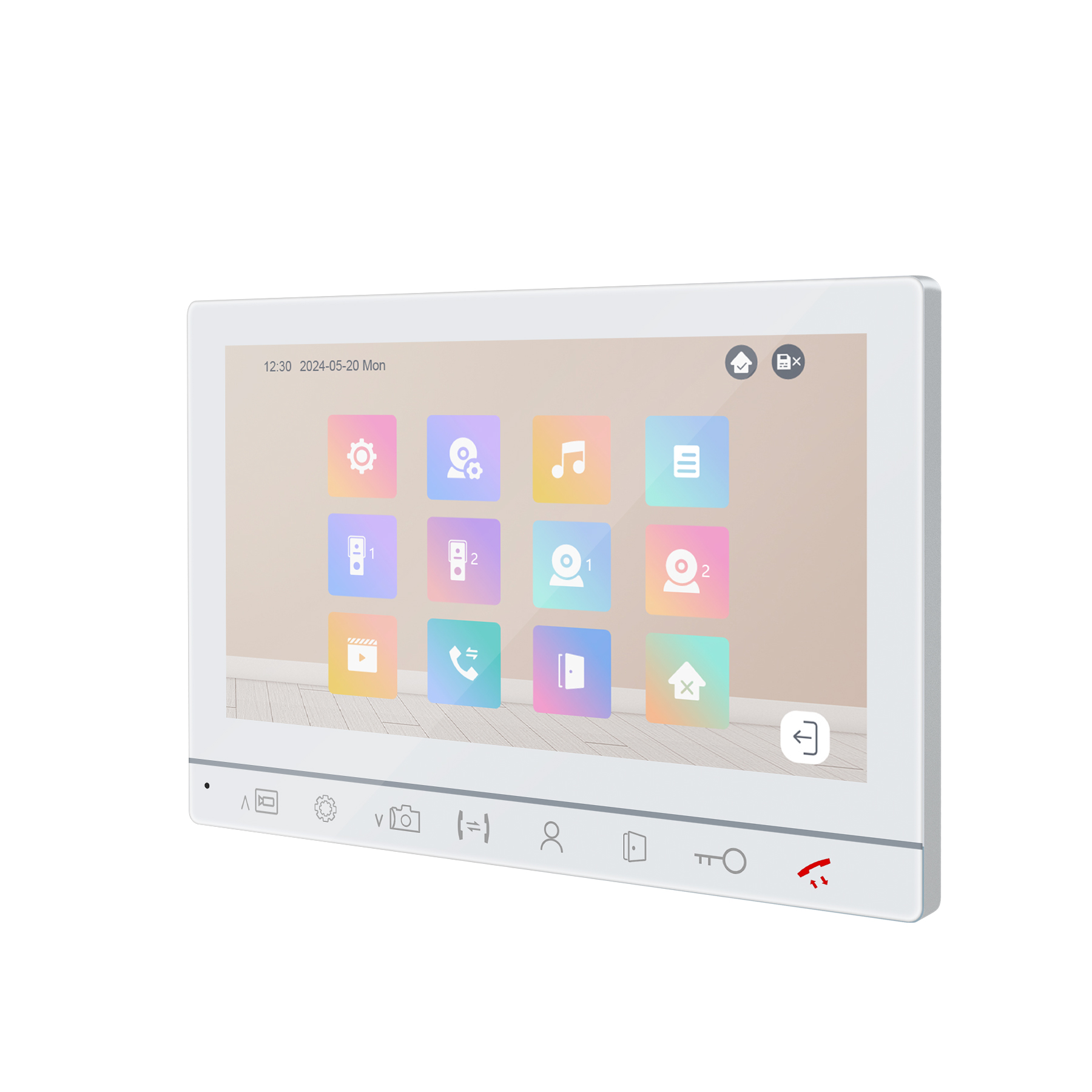

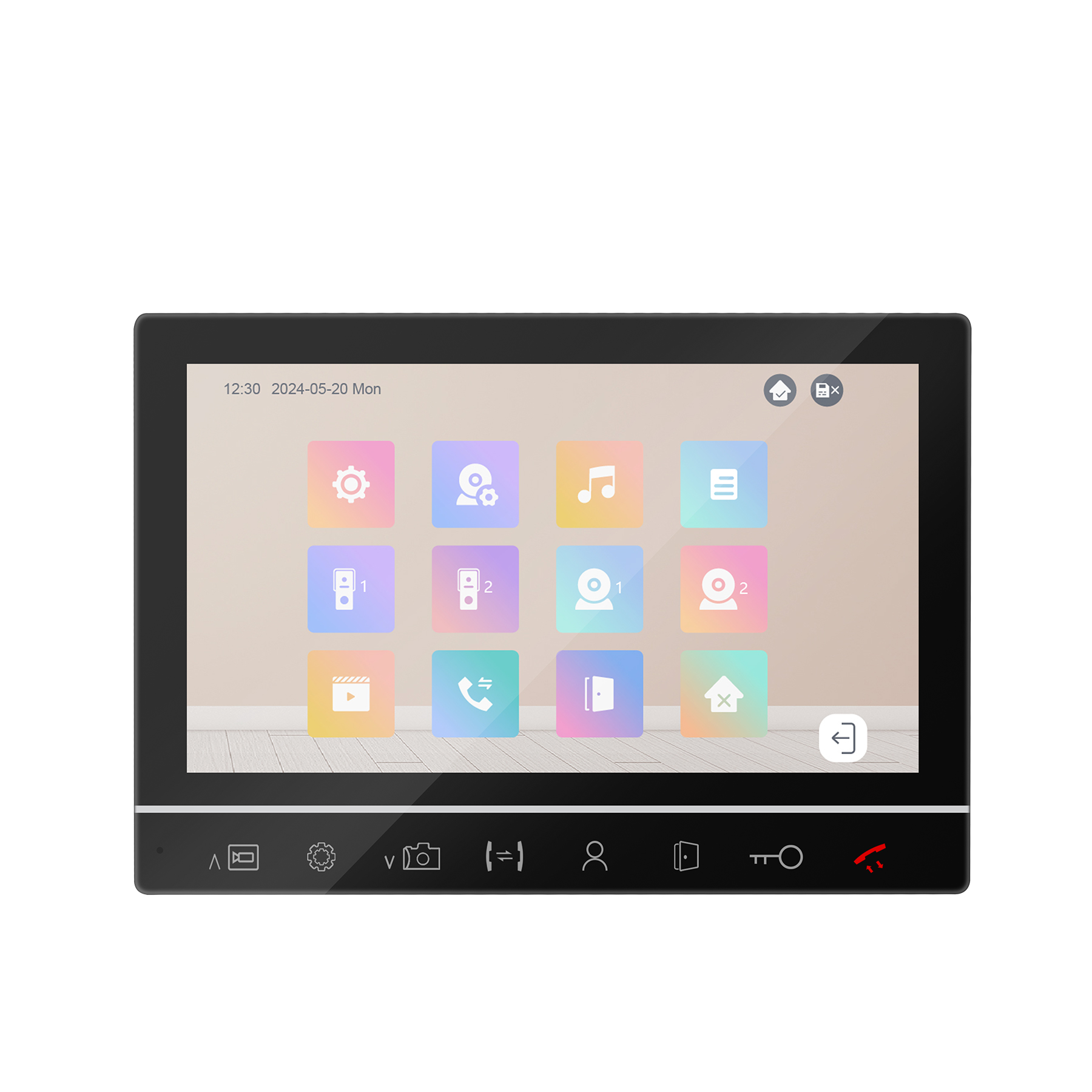

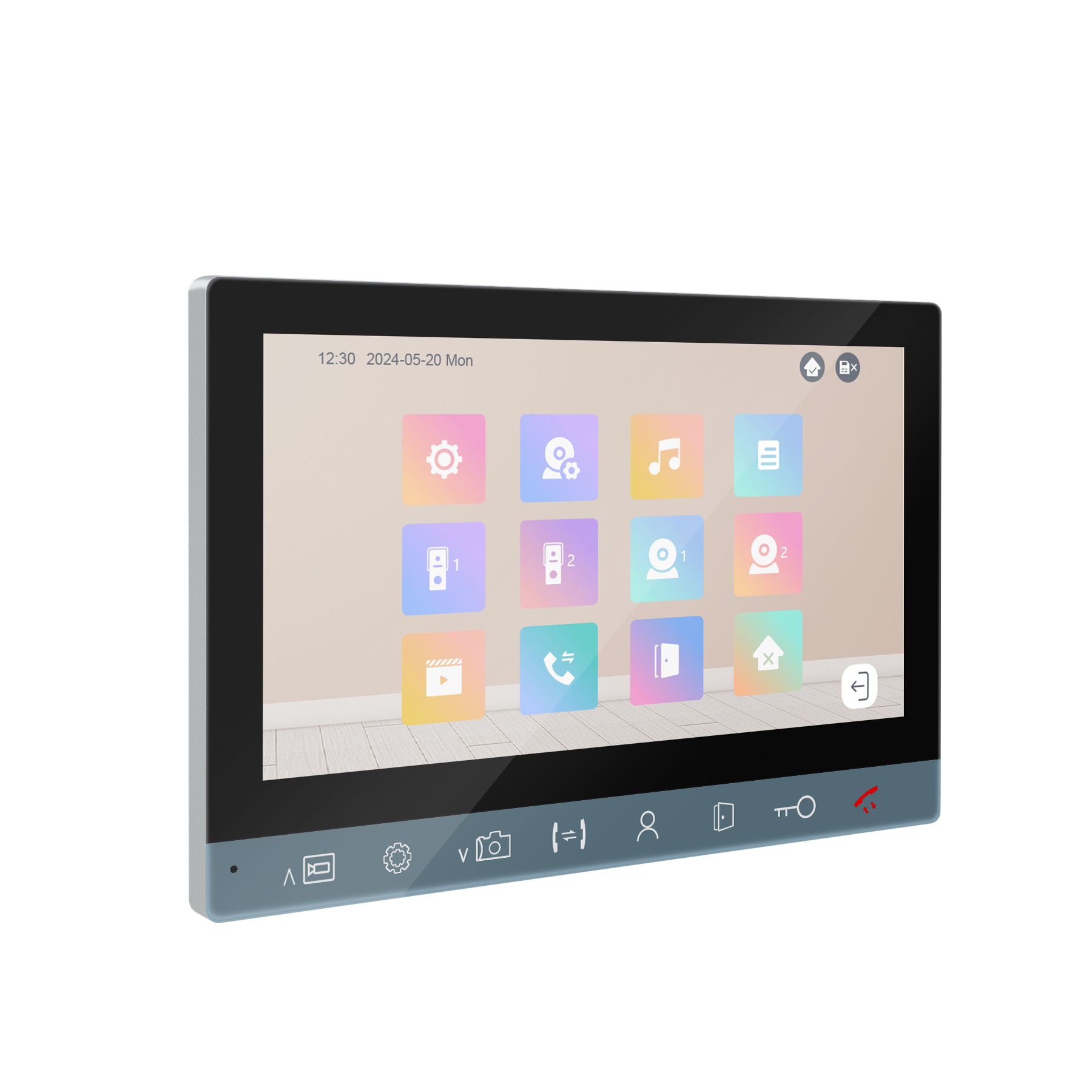

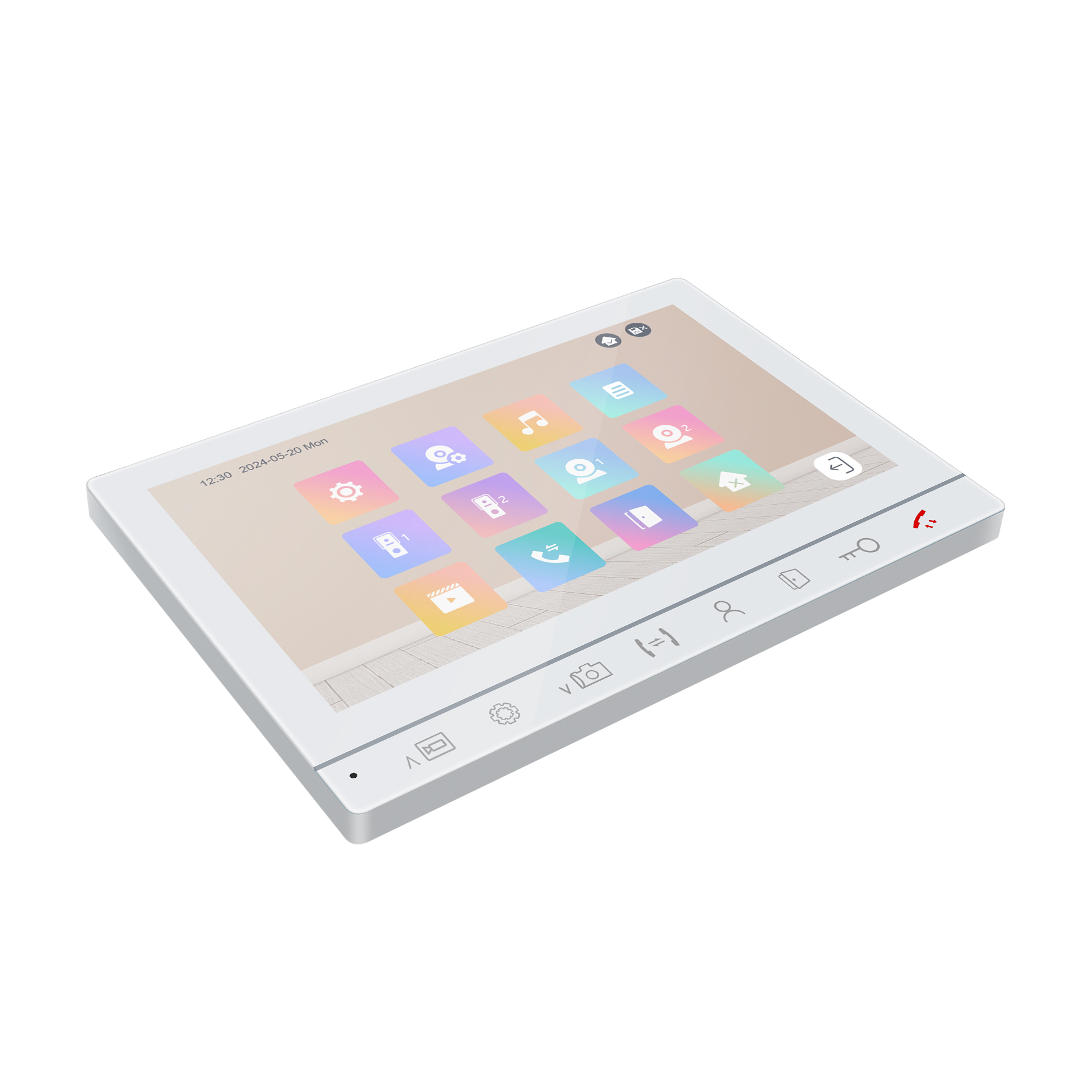

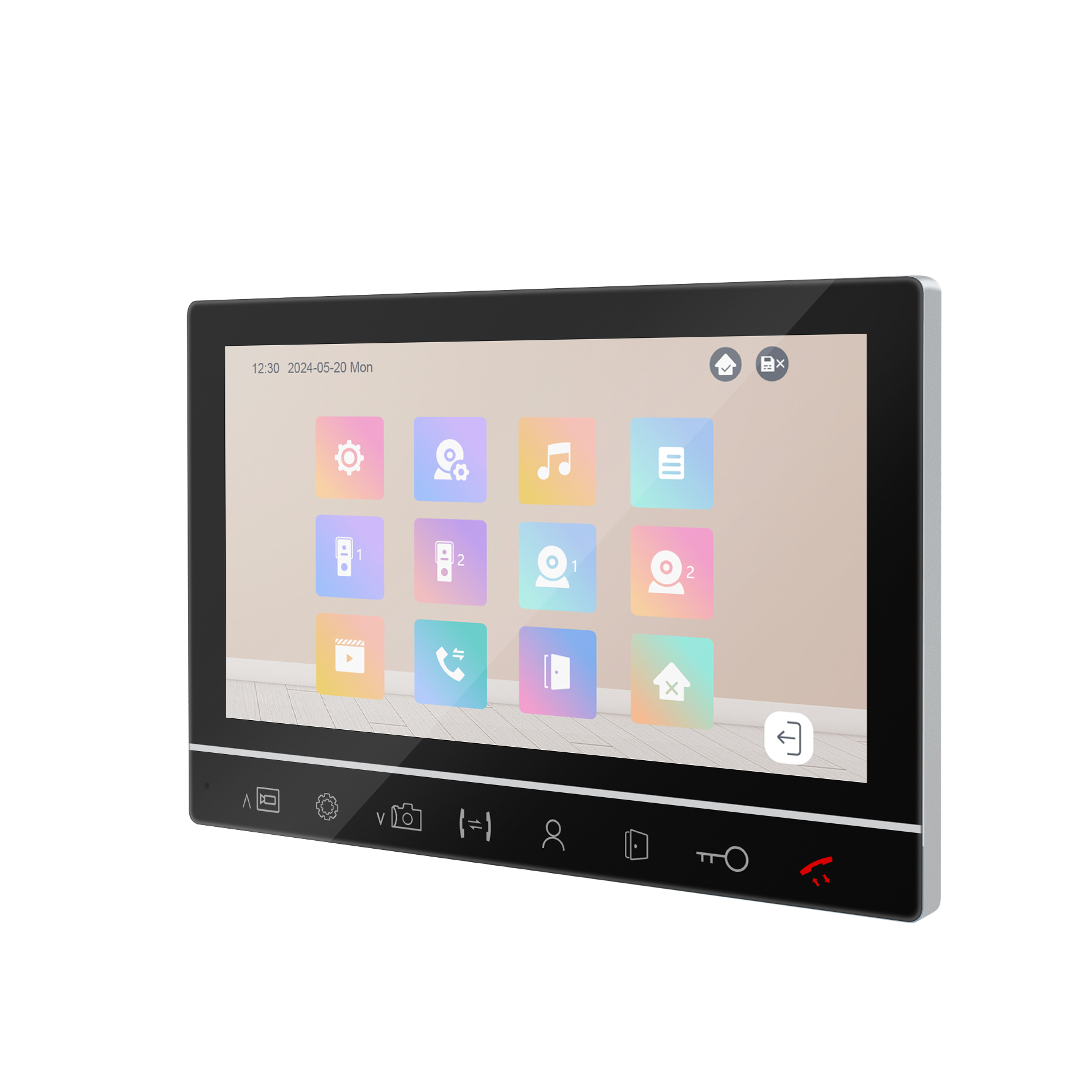

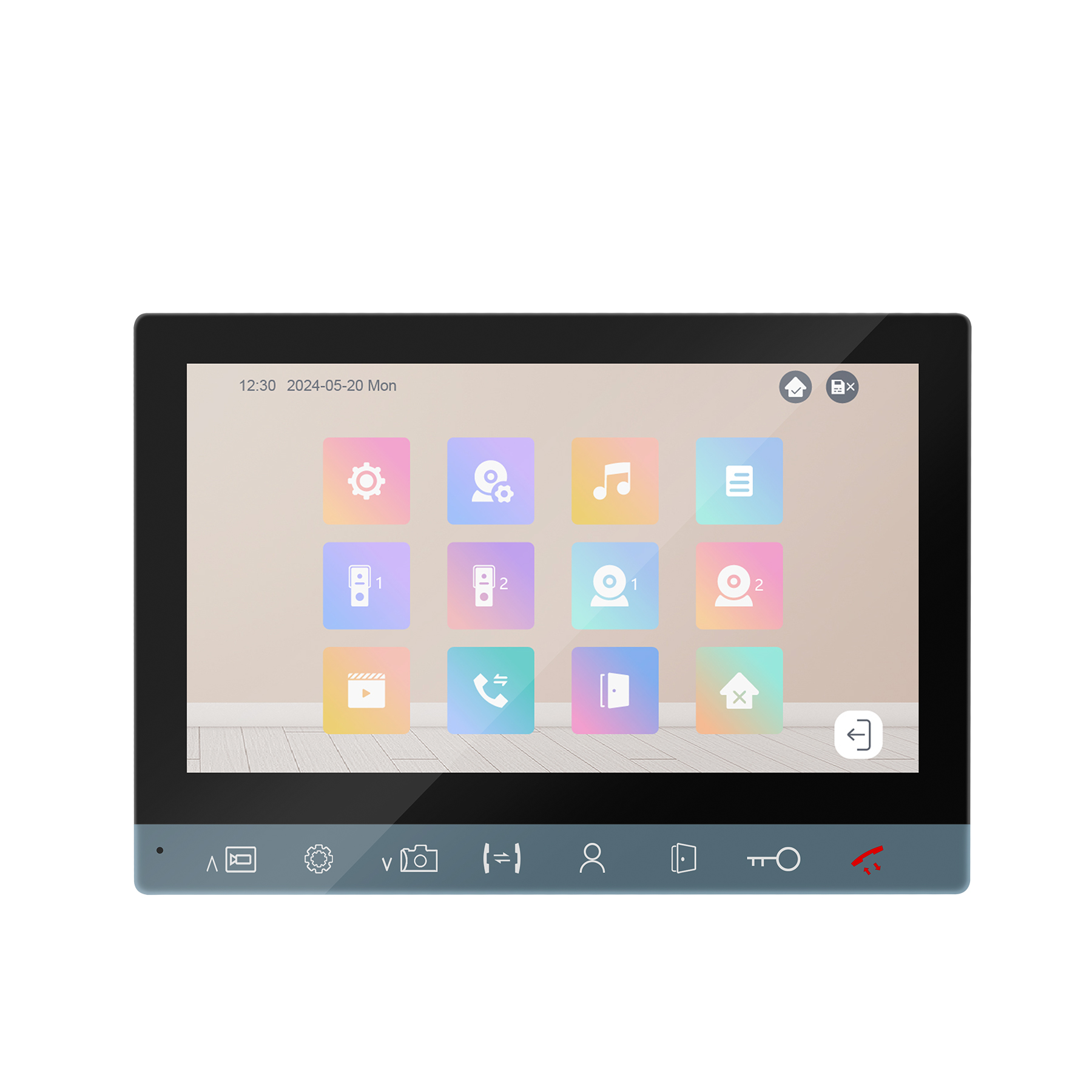

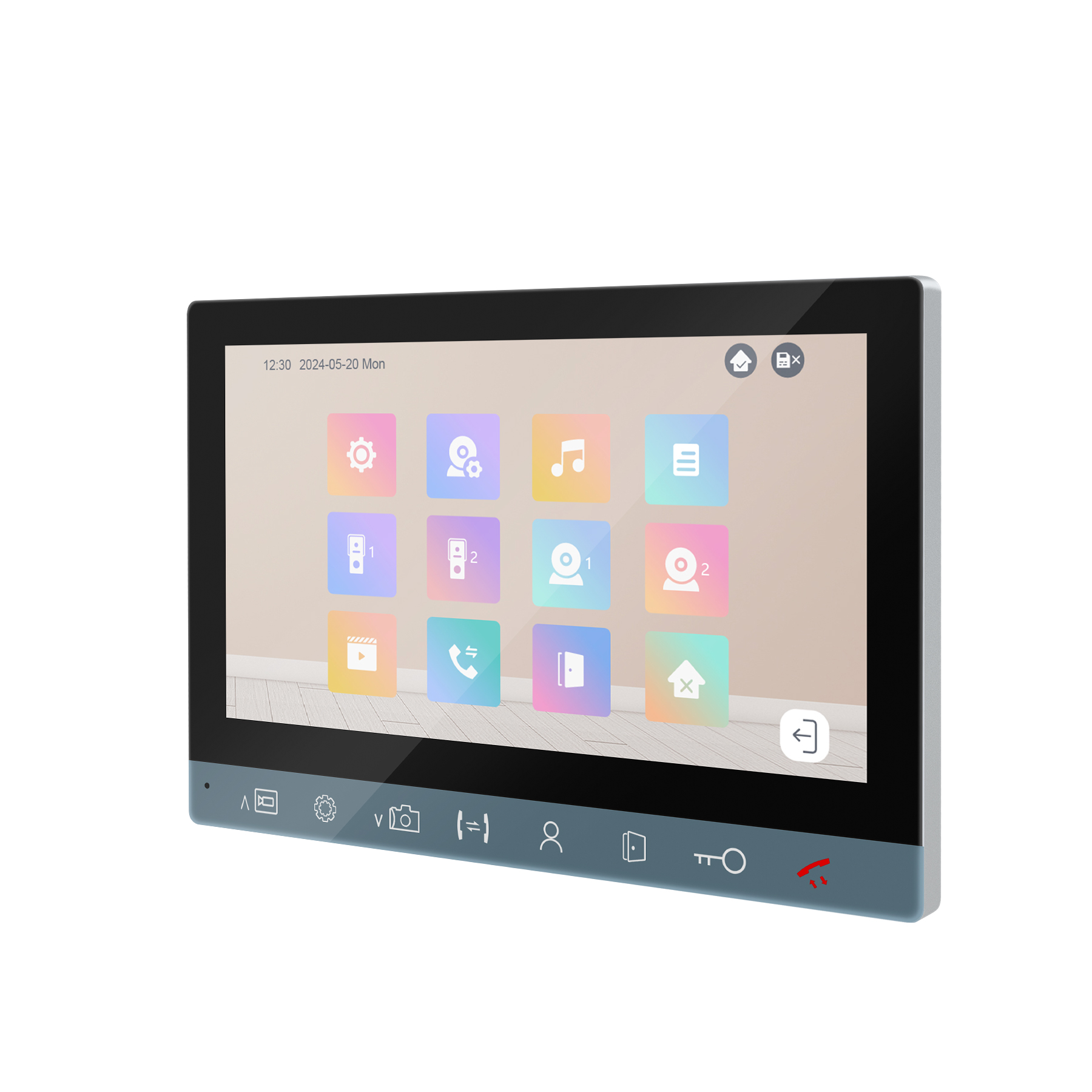

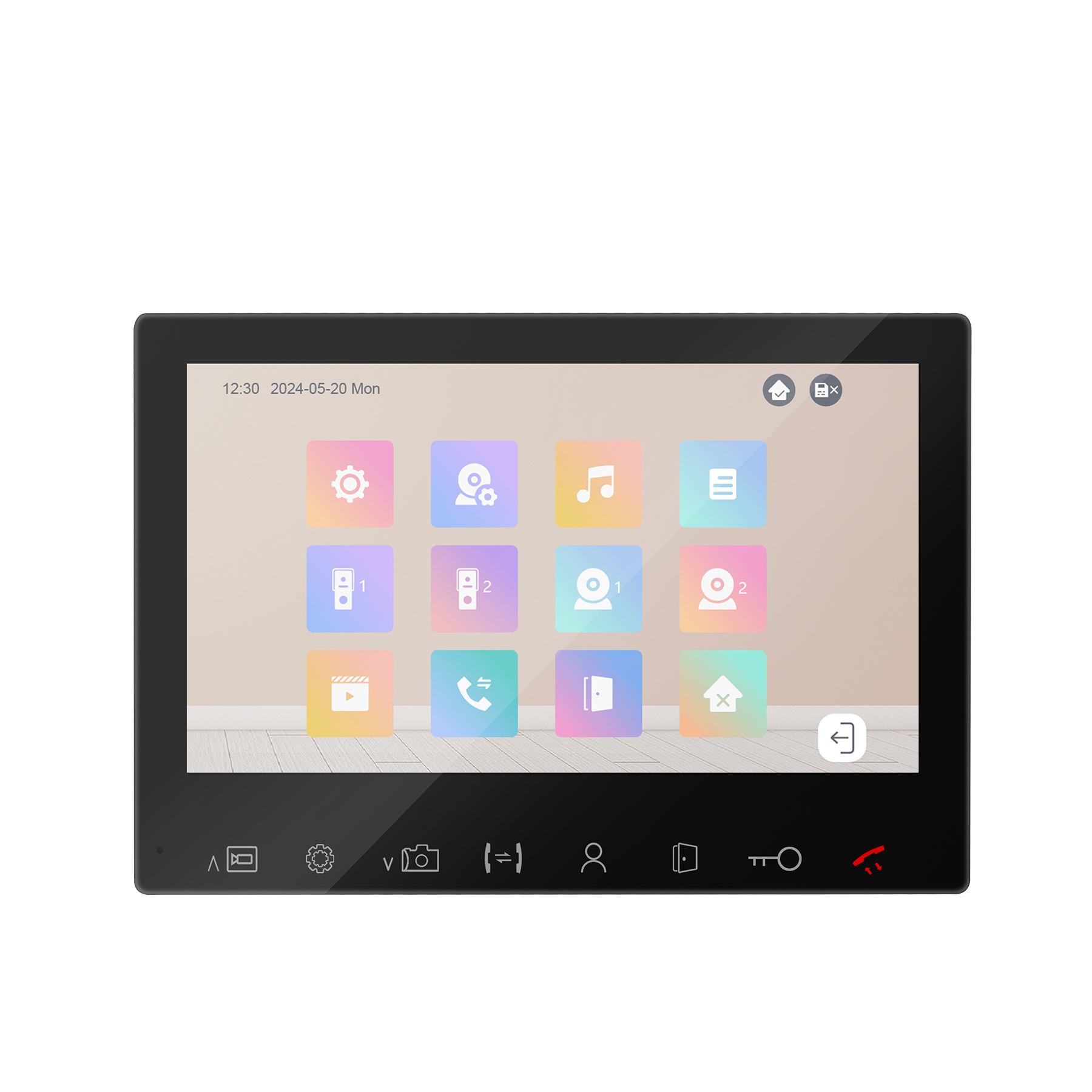

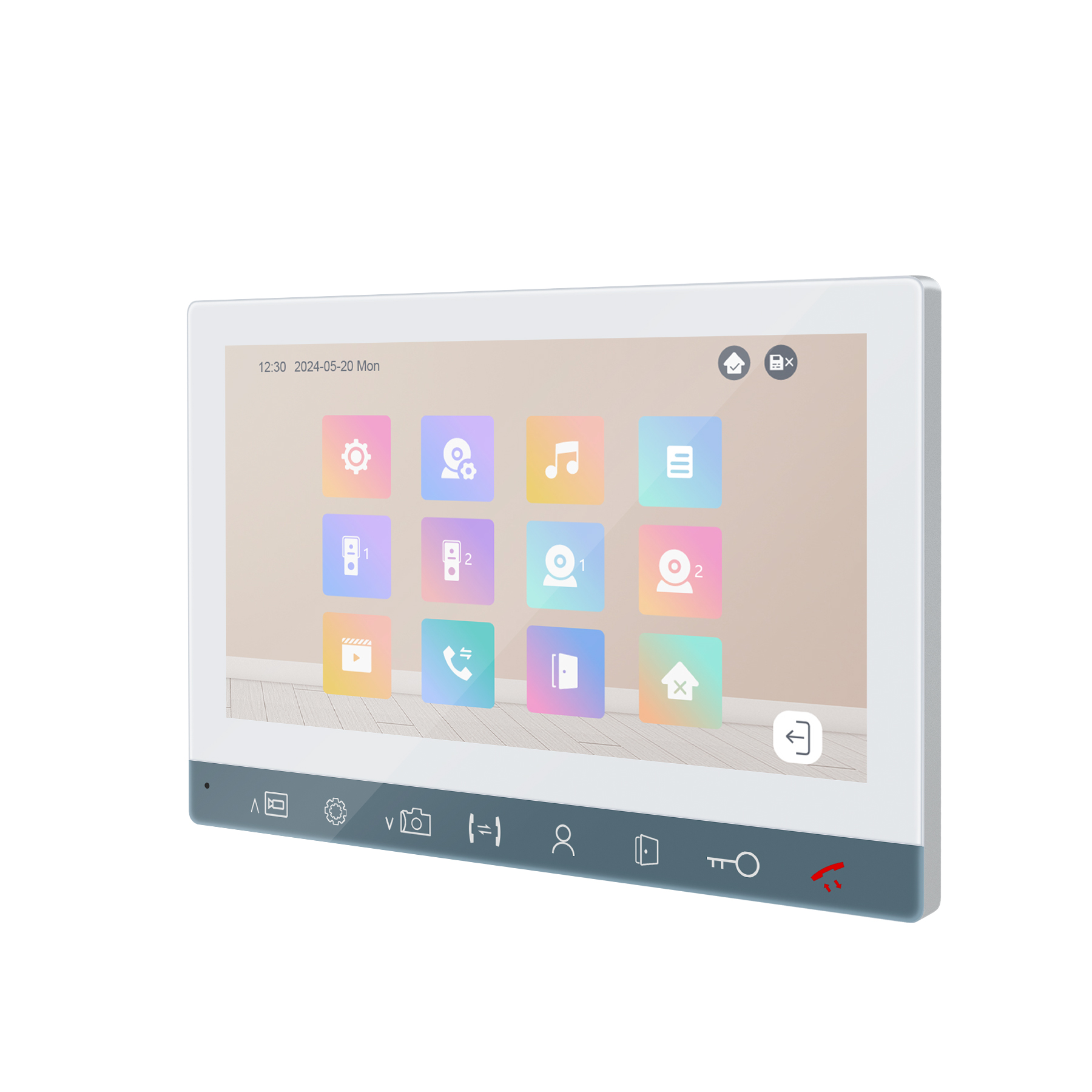

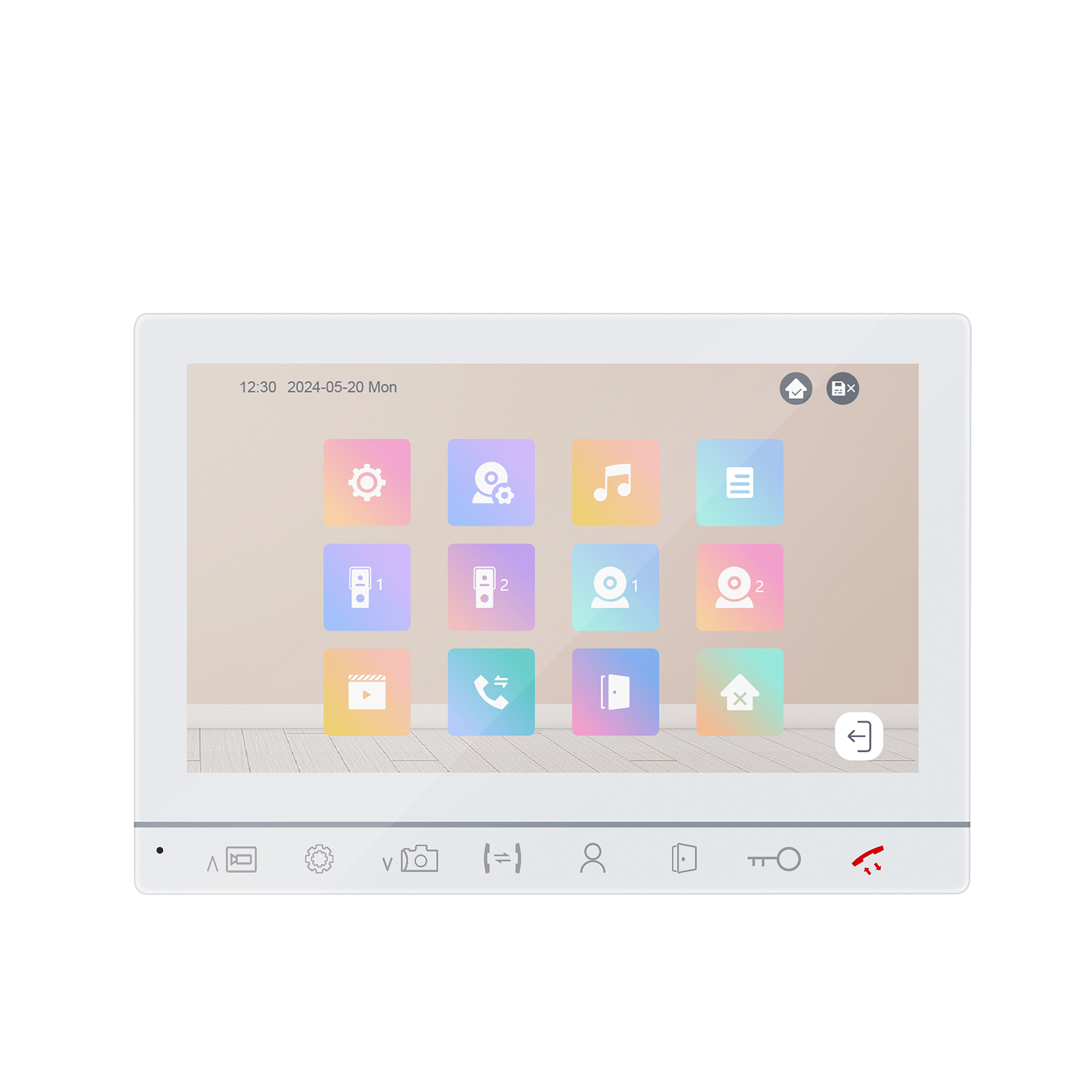

| Display | 7-inch IPS MIPI screen |
| Button Type | Sensor Button |
| Screen Resolution | 1024 x 600 |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in speaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Mode | Half duplex talk |

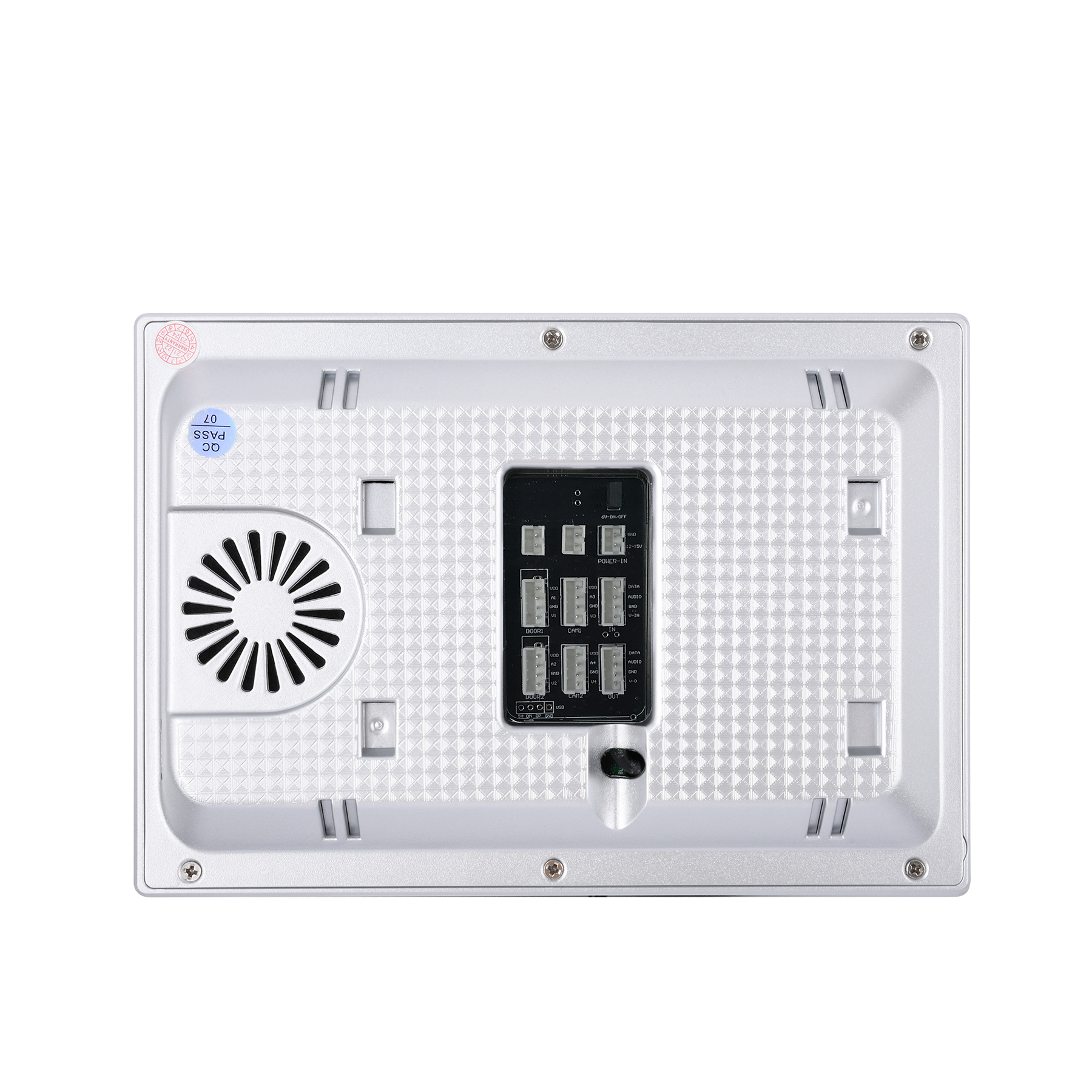

| Interface | |
| Door Station Interface | 2 |
| CCTV Camera Interface | 2 |
| Extension Interface | 2 |
| Gate Lock | 1 |
| Video Output | 1 |
| Power Interface | 1 |
| Storage | MicroSD card,max. 128GB |
| General | |
| Power | 12 VDC/2A; Built-in power supply:AC100-240V (Optional) |
| Power Consumption | Standby≤1.8W,Working≤3W |
| Working Temperature | -10℃ ~ 50℃ |
| Relative Humidity | 20%-95%(RH) |
| Certifications | CE;RED;RoHS |
| Material | ABS plastic |
| Installation | Surface mounting |
| Dimensions | 176*123*21 mm |
| Language | English, Russian, Ukrainian, German, Arabic (customizable) |
