– TCP/IP System.
– Integrated Linux OS.
– Snapshot and Video Recording Capabilities.
– Human Motion Detection.

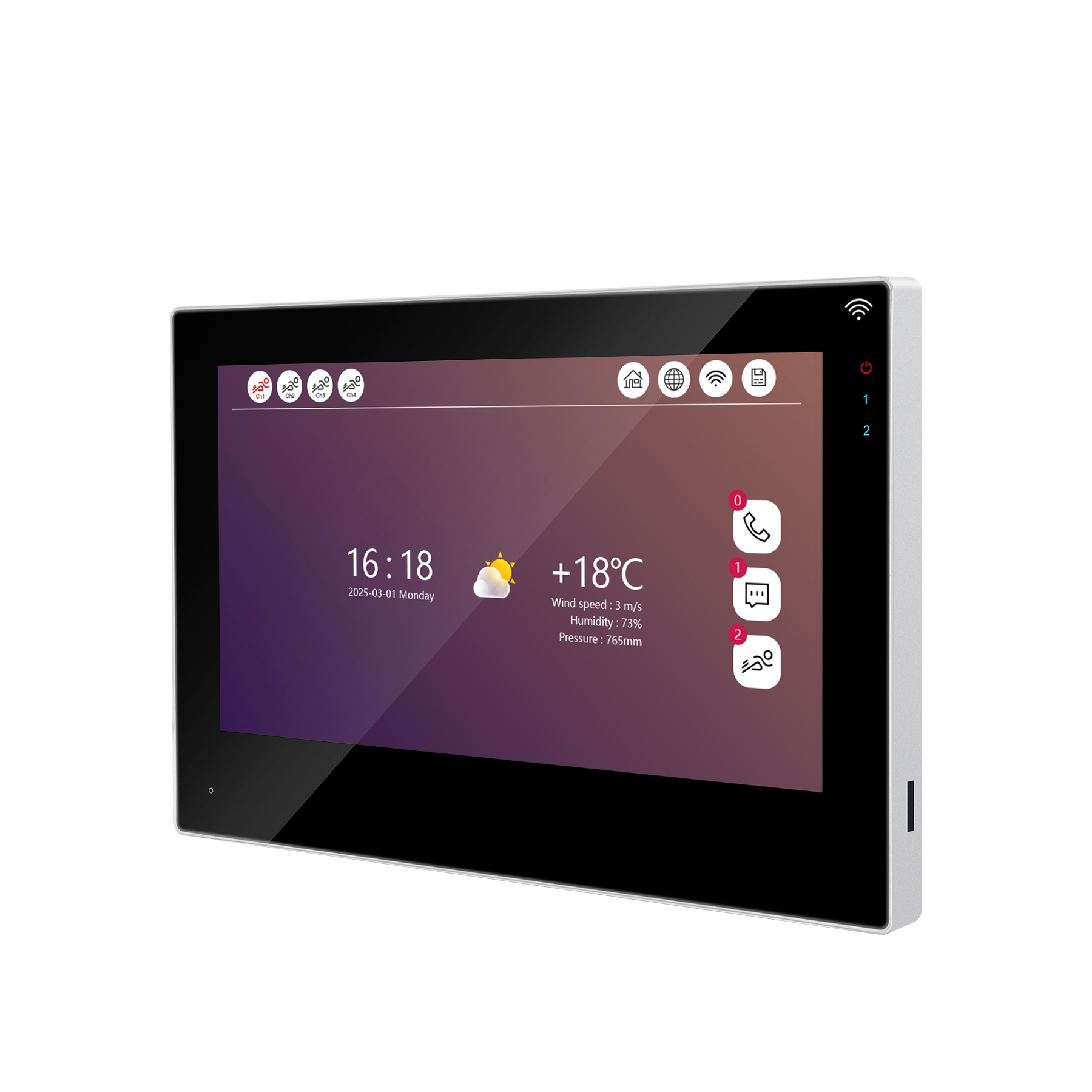

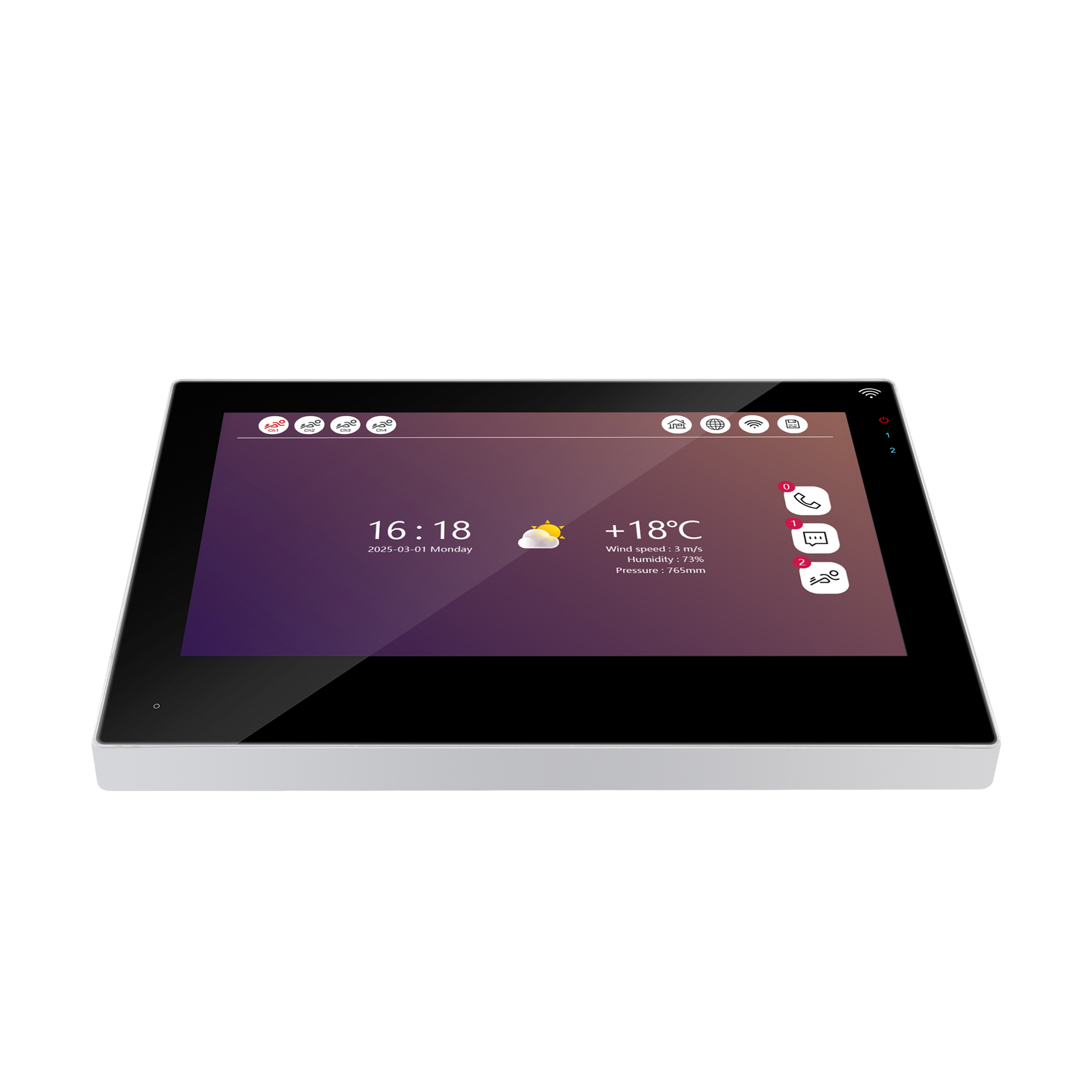

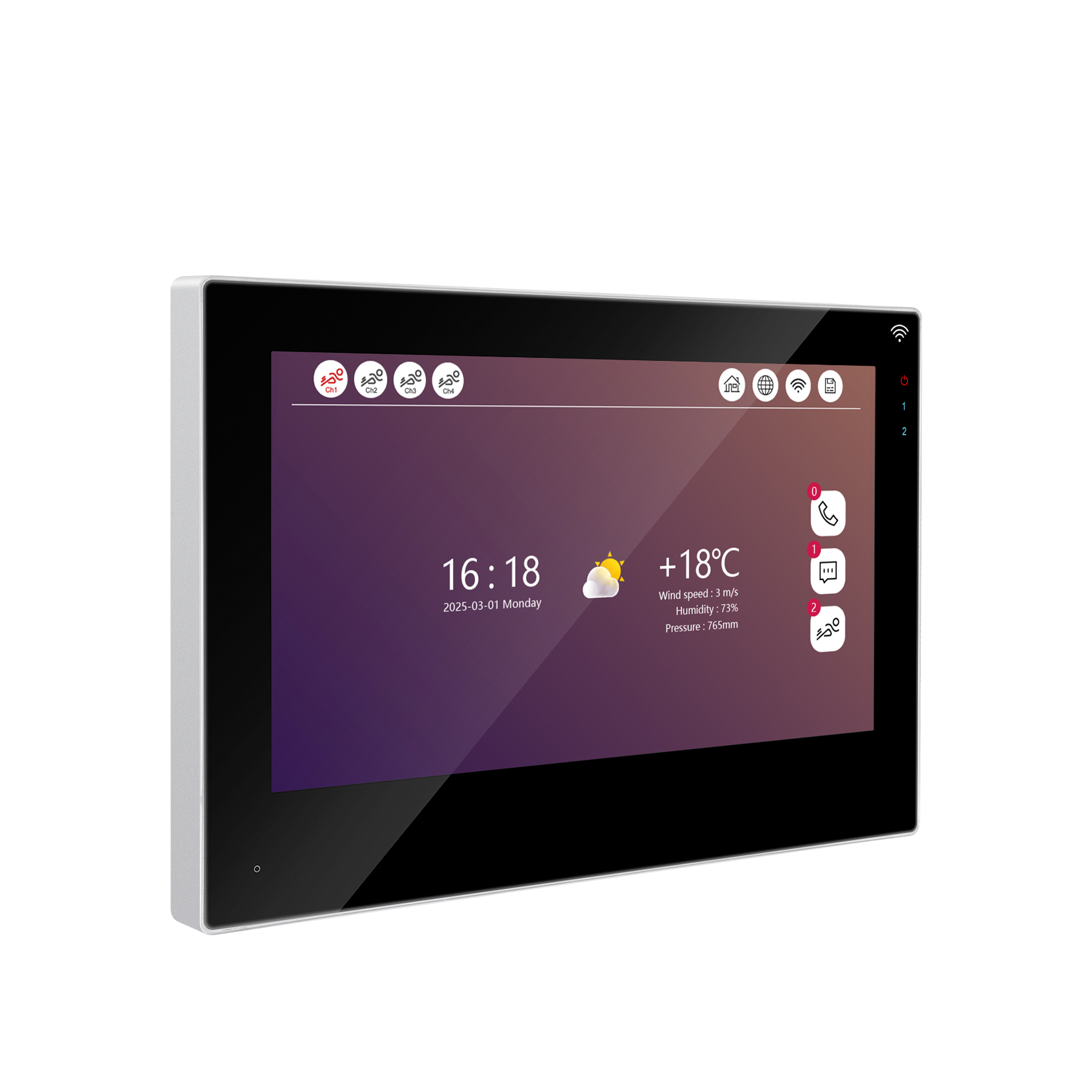

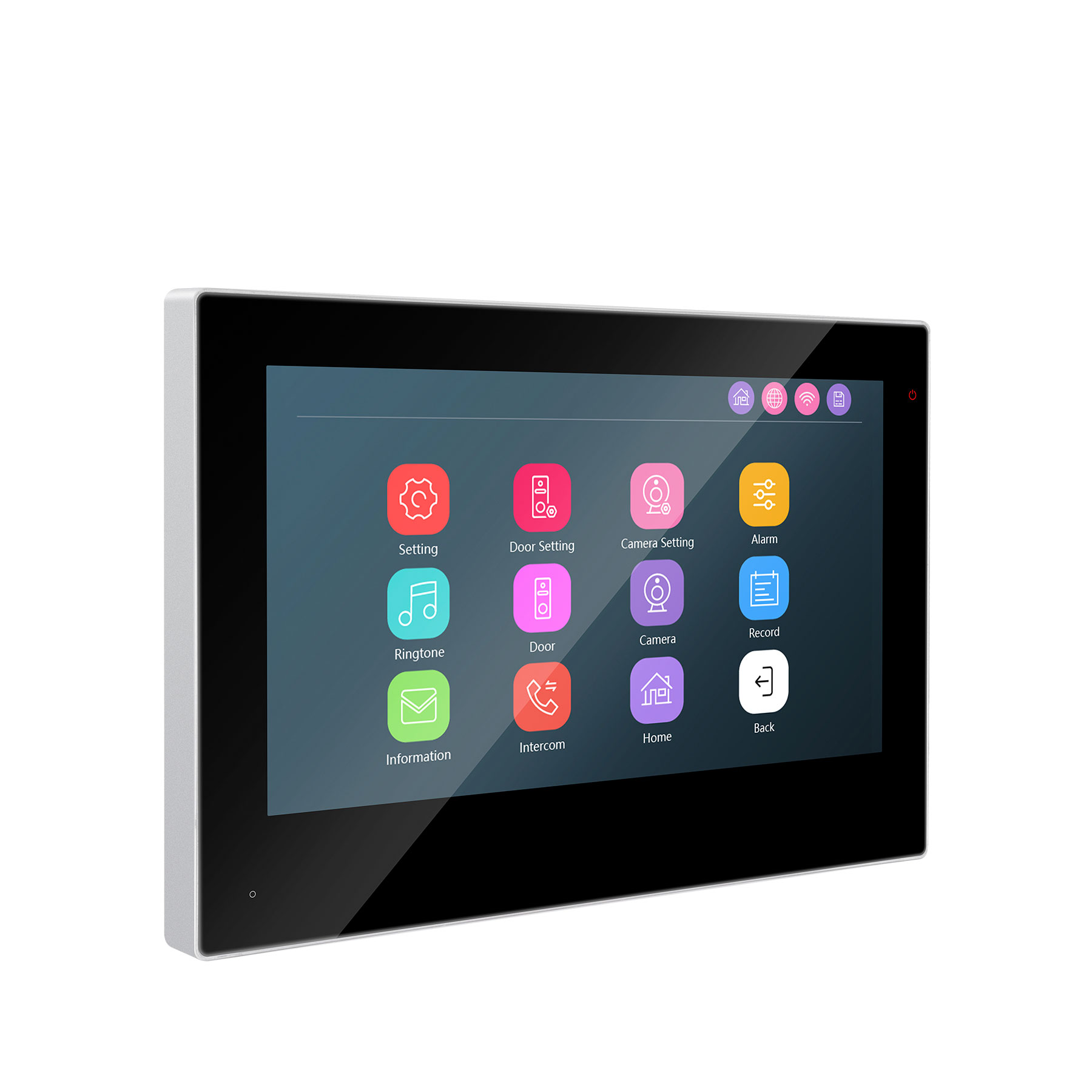

– Three Optional Themes.
– Supports Up to 4 Door Stations, 4 CCTV Cameras, and 6 Indoor Units.
– Remote Management via the Tuya App.
– Compatible with microSD Card (up to 1TB).
– Standard PoE Power Supply.
– Customizable Do Not Disturb Mode.
| System | |
| Operation System | Embedded LINUX OS |
| Network Protocol | TCP/IP |
| ROM | 1G |
| RAM | 2G |
| CPU | Embedded ARM Micro Processor |
| Wi-Fi Connectivity | 2.4GHz |
| Basic | |

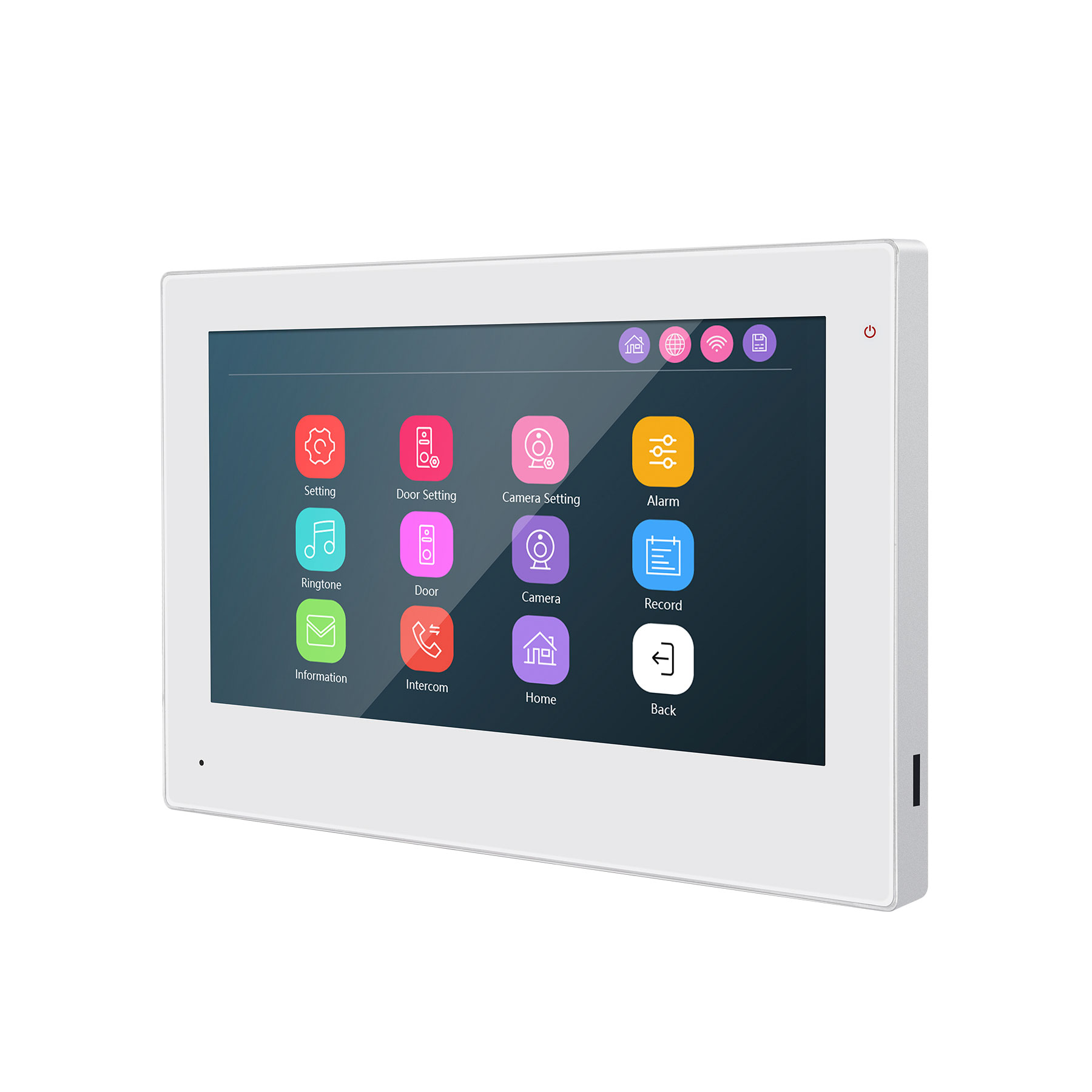

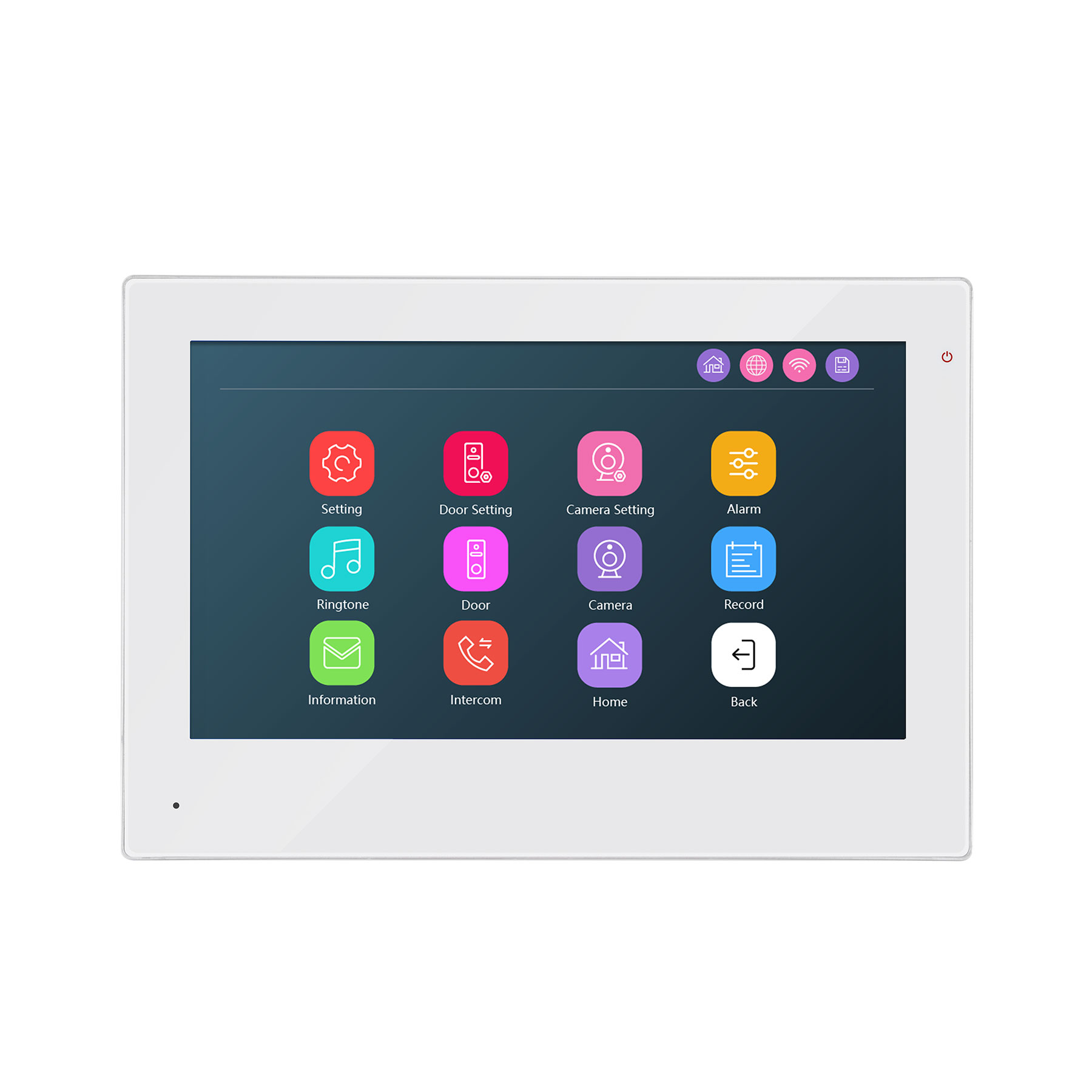

| Display | 7-inch IPS |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 1024 x 600 |
| Video Compression | H.264 |
| Audio Compression | G.711a; G.711u |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in speaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Mode | Two-way talk |
| Interface | |

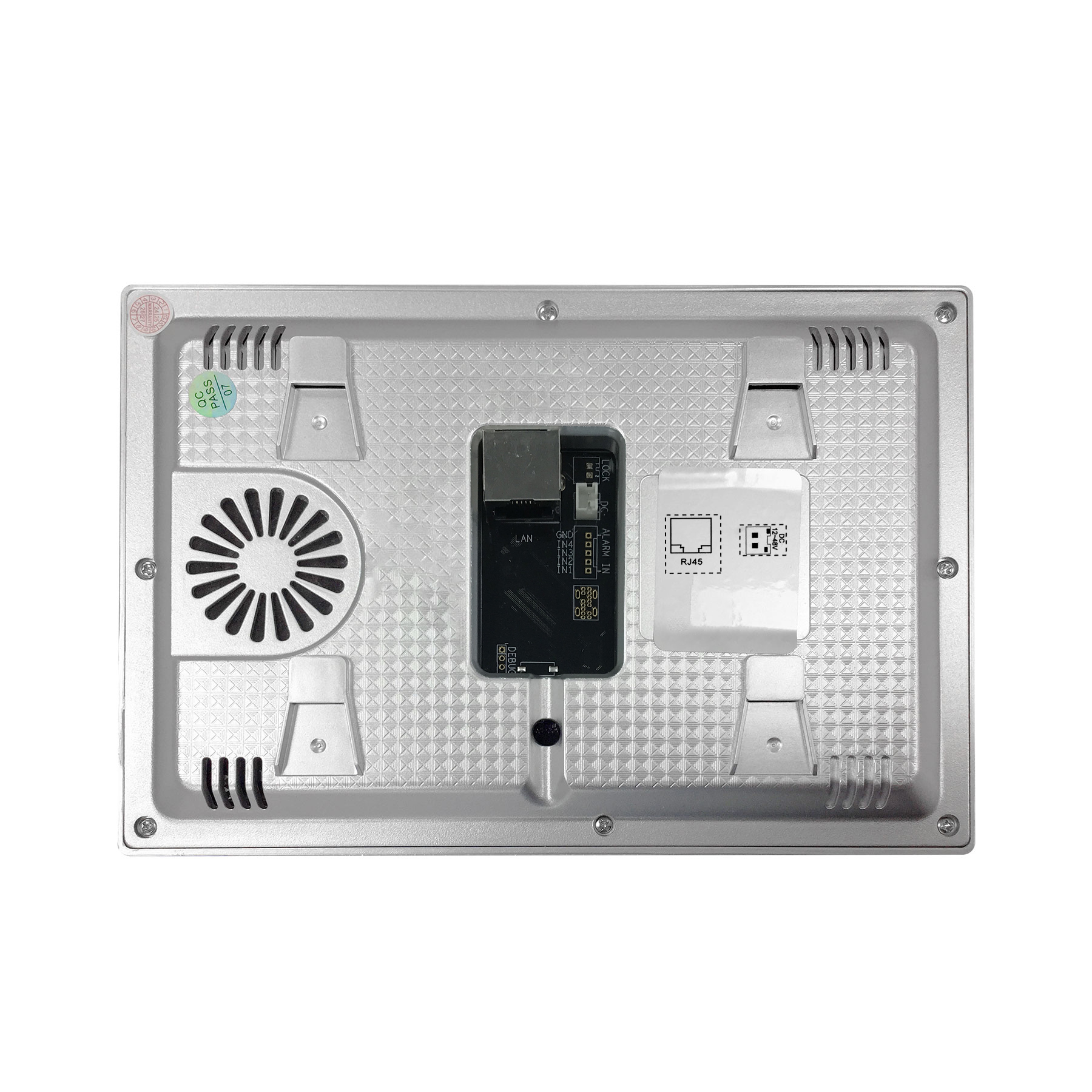

| Network Port | 1 RJ-45 |
| Power Interface | 1 |
| Storage | MicroSD card,max. 1TB |
| General | |
| Power | 24 VDC/1.66A;Standard PoE |
| Power Consumption | Standby≤2.8W,Working≤5W |
| Working Temperature | -10℃ ~ 50℃ |
| Relative Humidity | 20%-95%(RH) |
| Certifications | CE;RED;RoHS |
| Material | ABS plastic |
| Installation | Surface mounting |

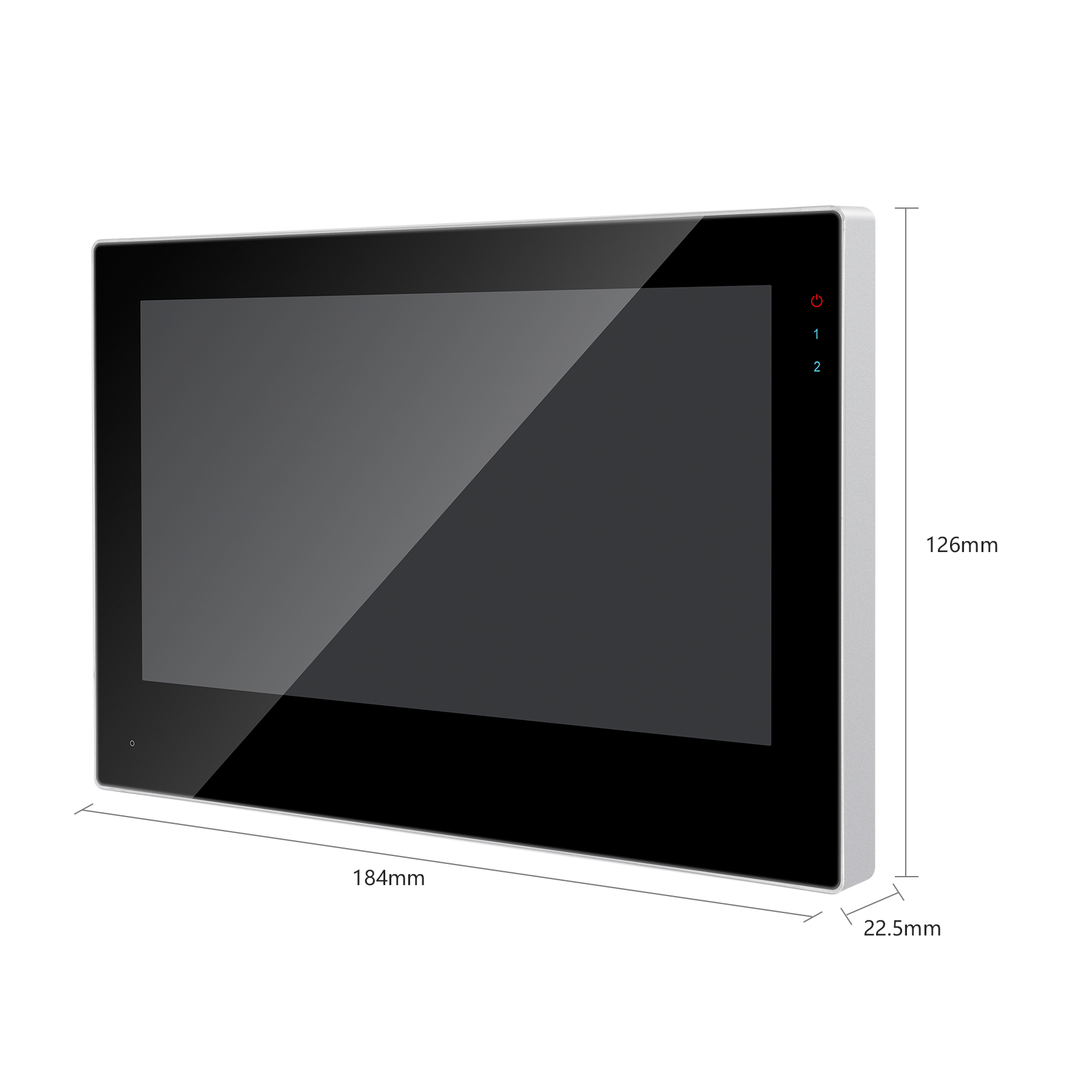

| Dimensions | 184mm*126mm*22.5mm |
| Weight | 0.3kg |
| Language | English, Russian, Ukrainian, German, Arabic (customizable) |
