– 4-wire installation.
– Integrated Linux operating system.
– Capabilities for snapshot taking and video recording.
– Video output functionality.
– Motion detection feature.
– Customizable Do Not Disturb mode.
– Three theme options are available.
– Supports microSD card (up to 1TB).
– Maximum configuration: 2 door stations, 2 CCTV cameras, 6 indoor monitors.
– Remote control via the Tuya app.
| System | |
| Operation System | Embedded LINUX OS |
| ROM | 1G |
| RAM | 2G |
| CPU | Embedded ARM Micro Processor |
| Wi-Fi Connectivity | 2.4GHz |
| Basic | |

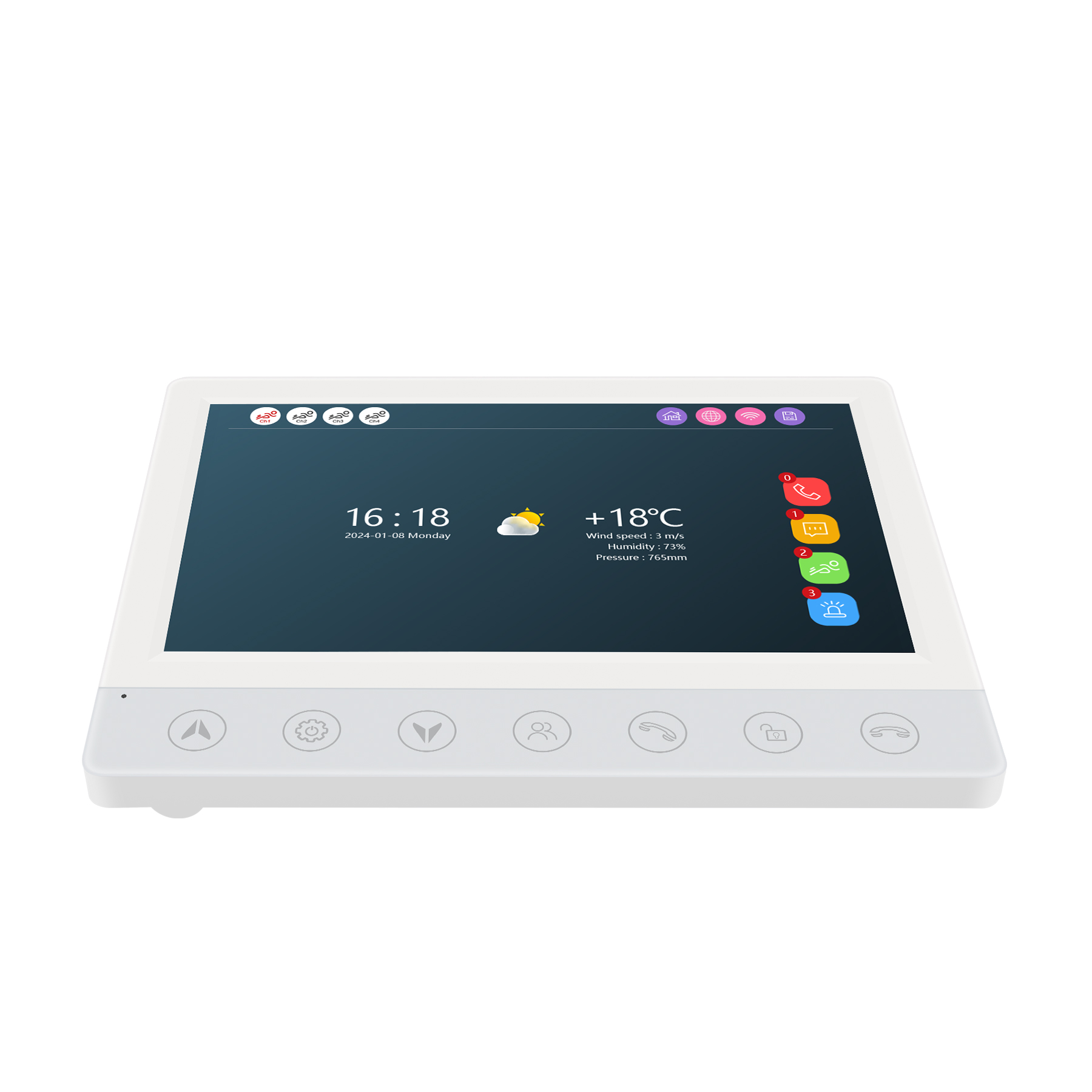

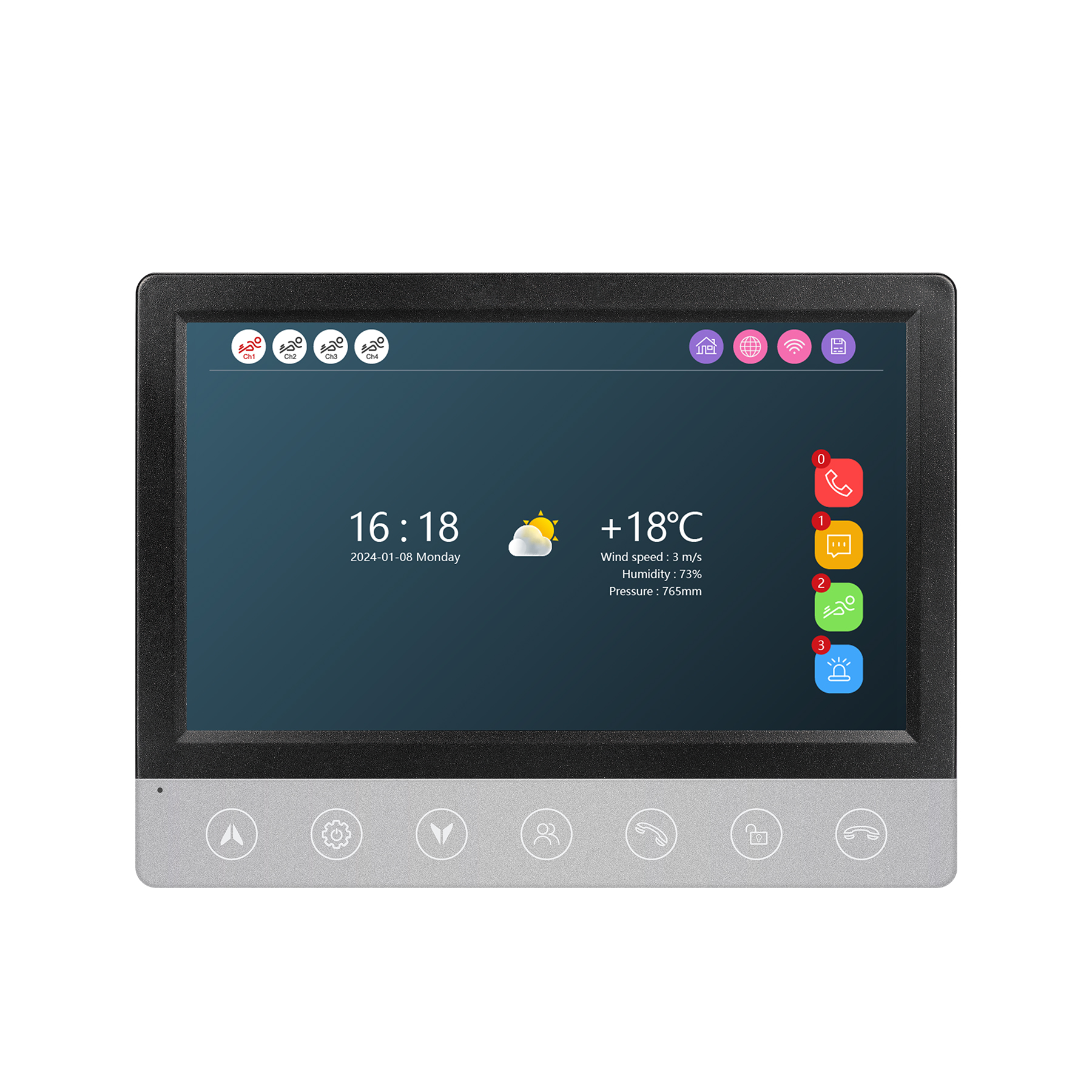

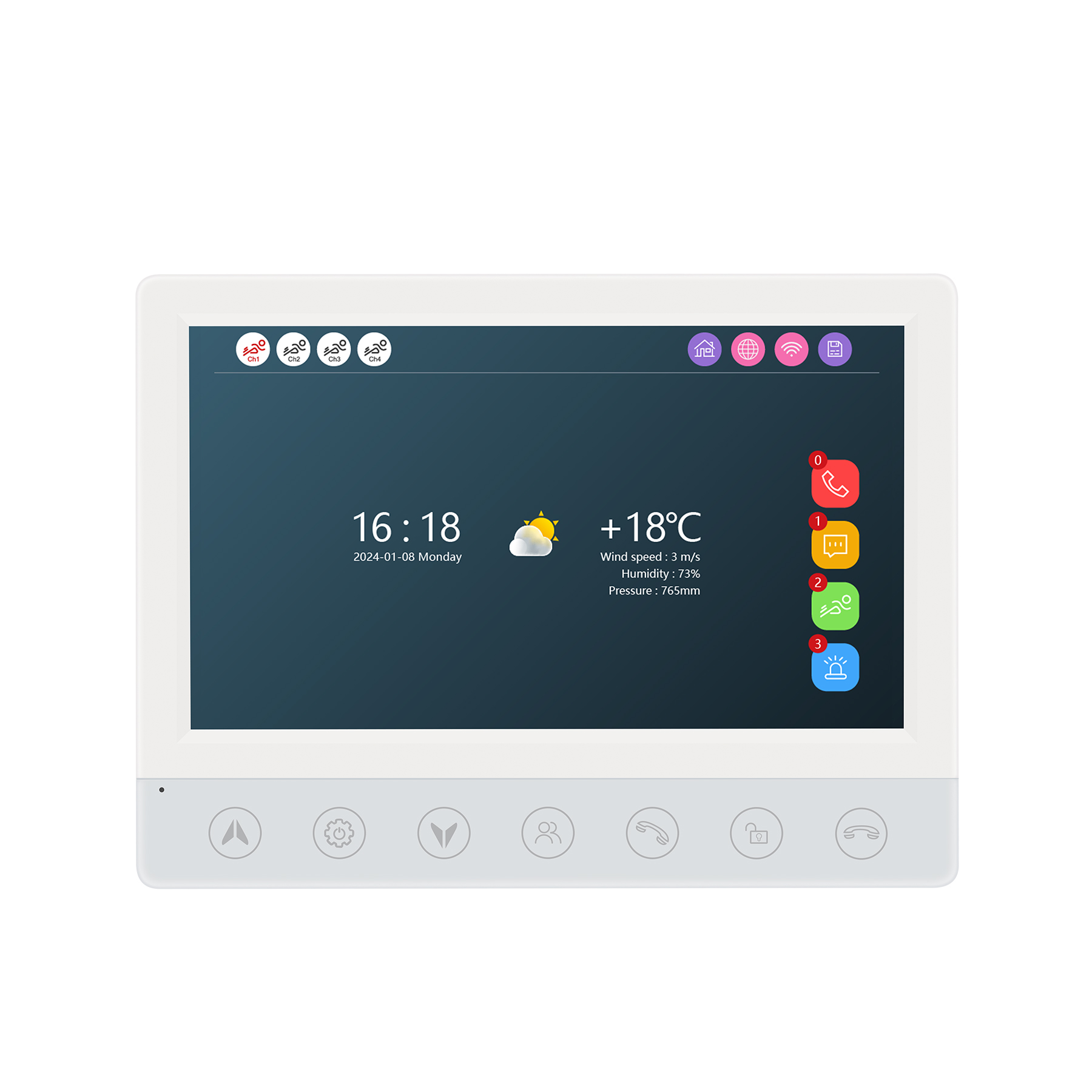

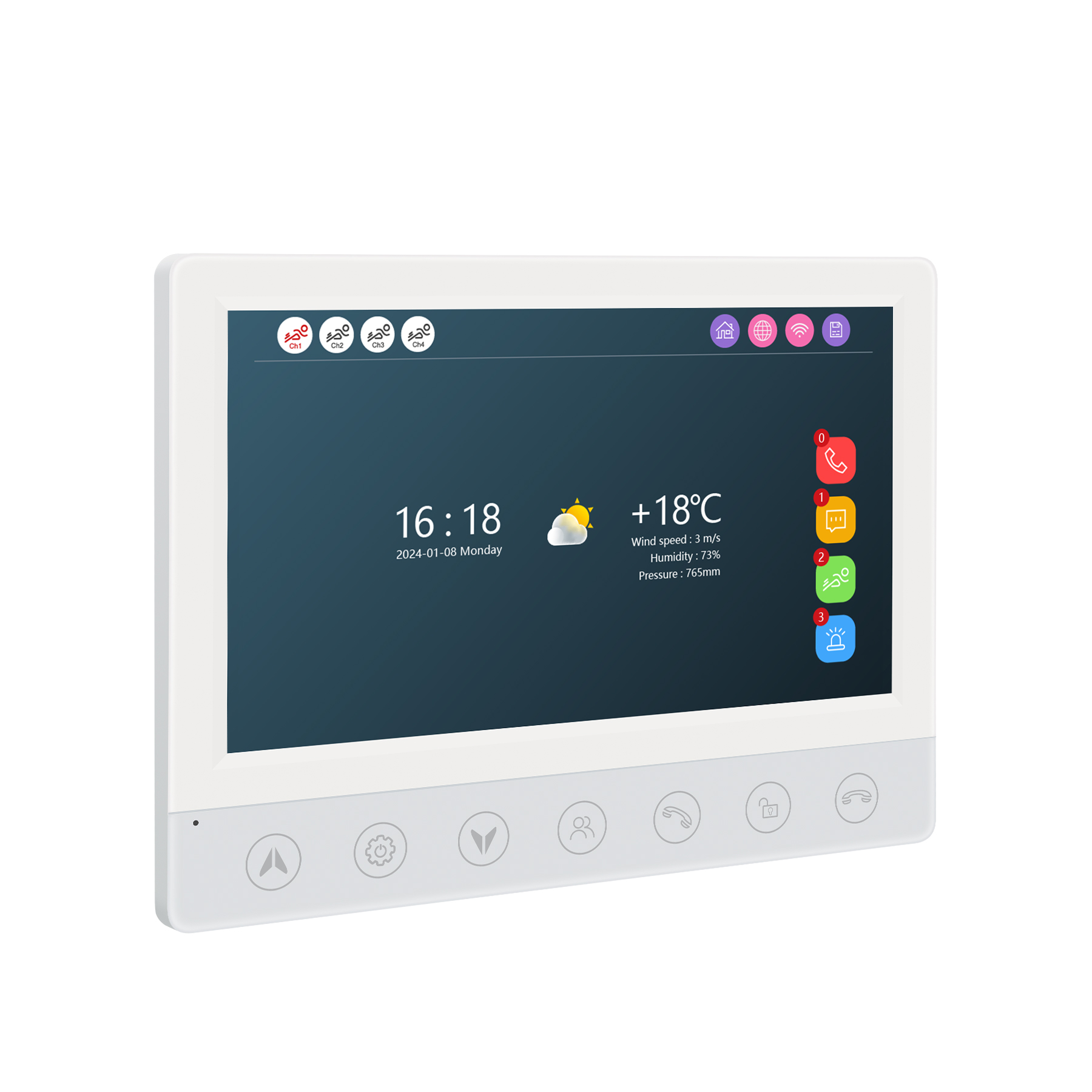

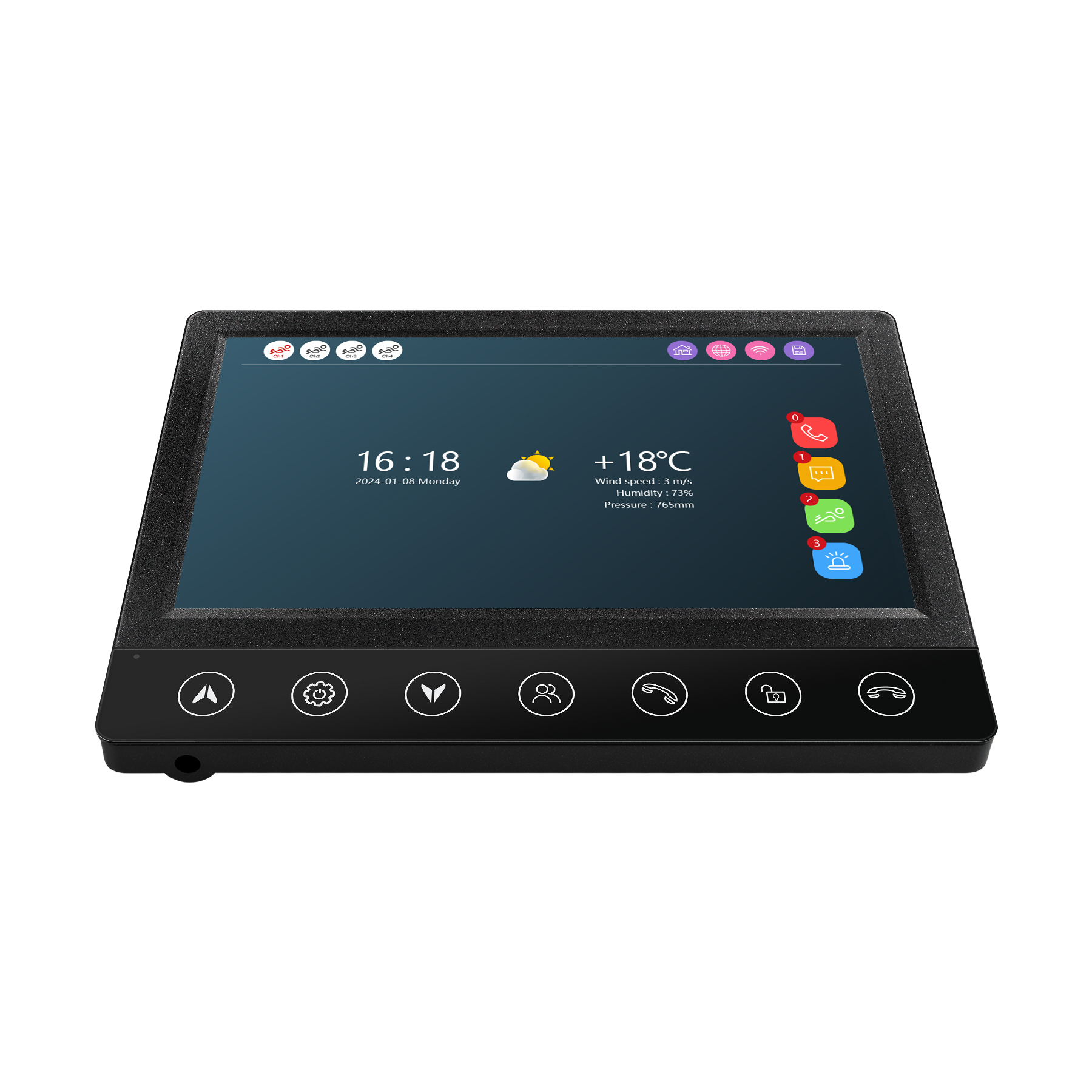

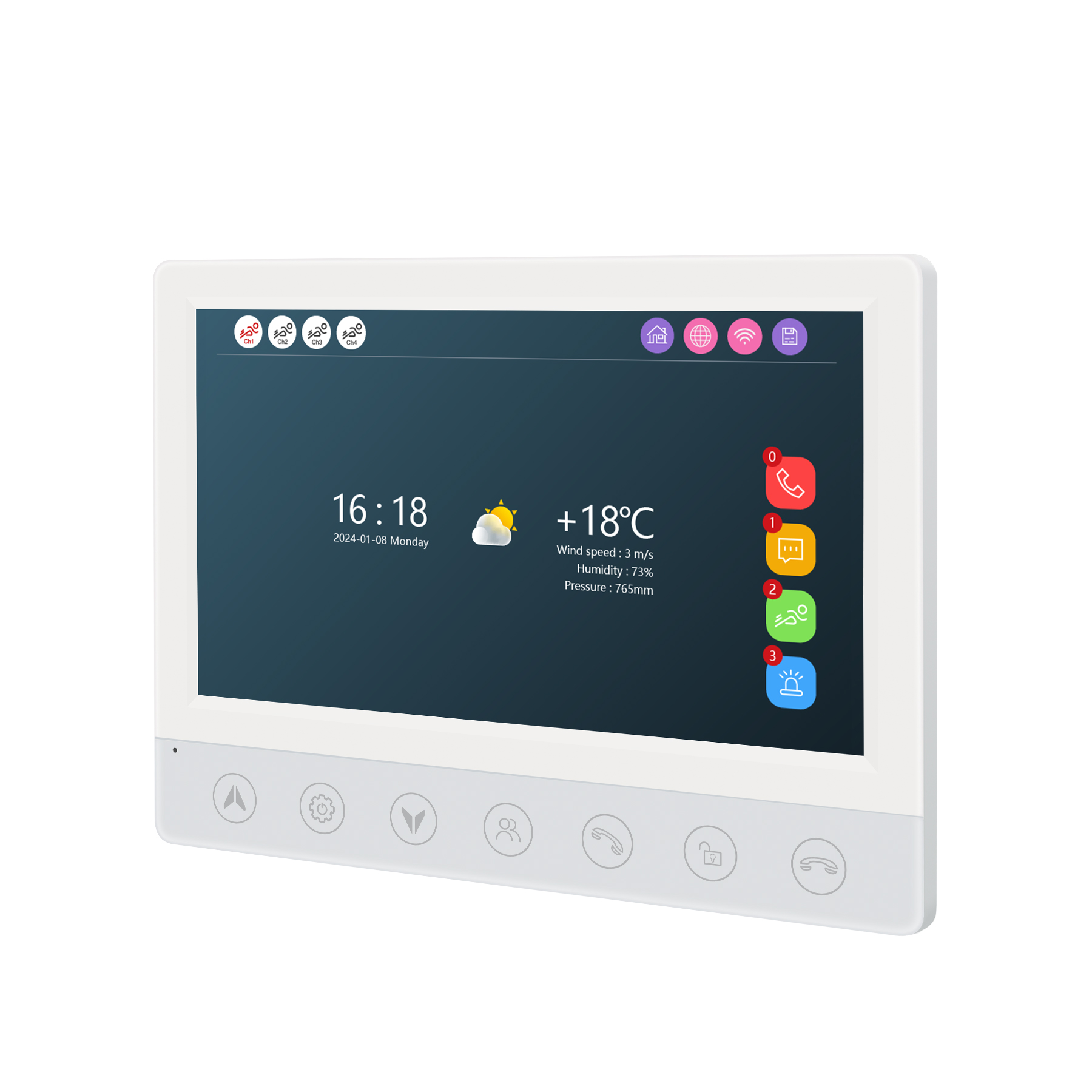

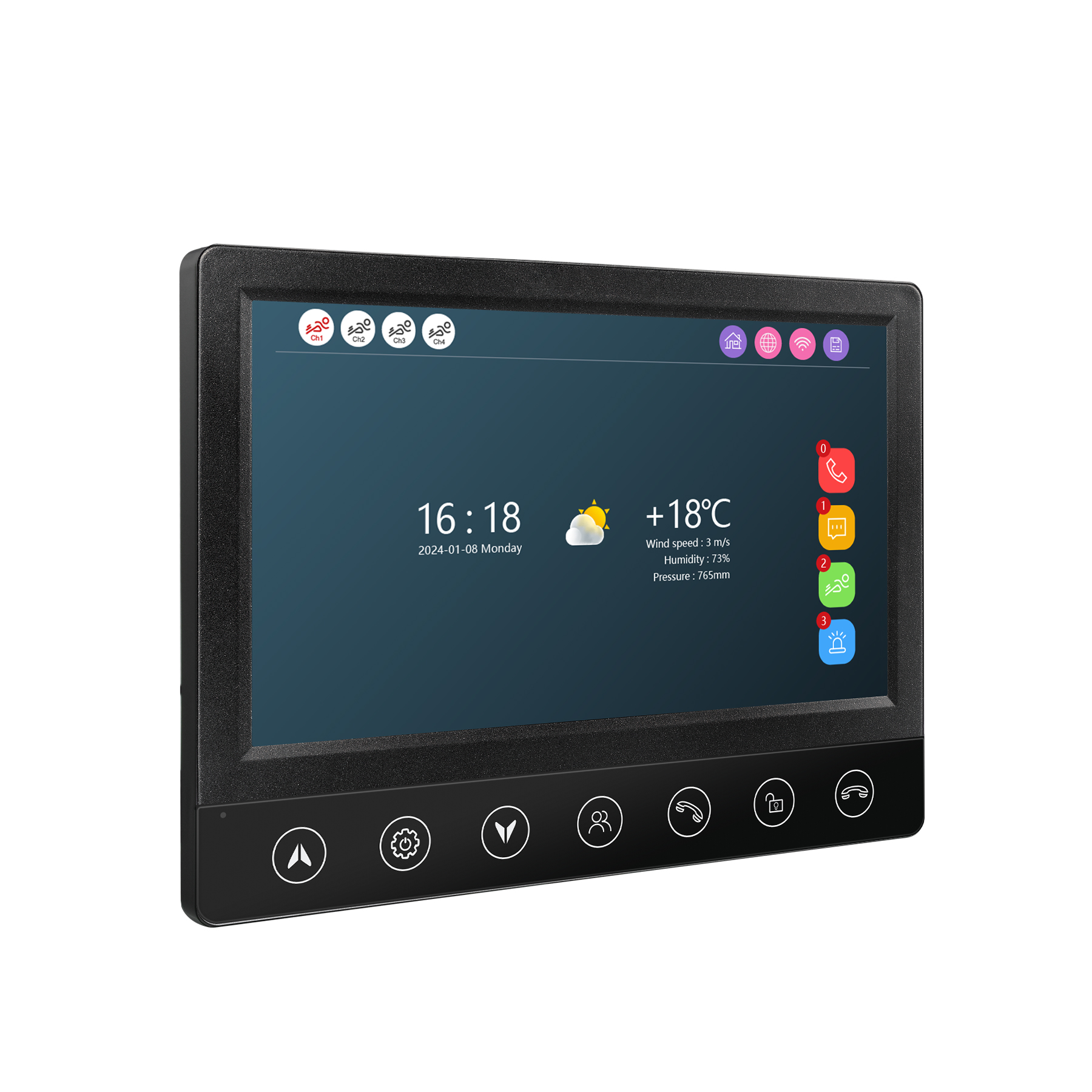

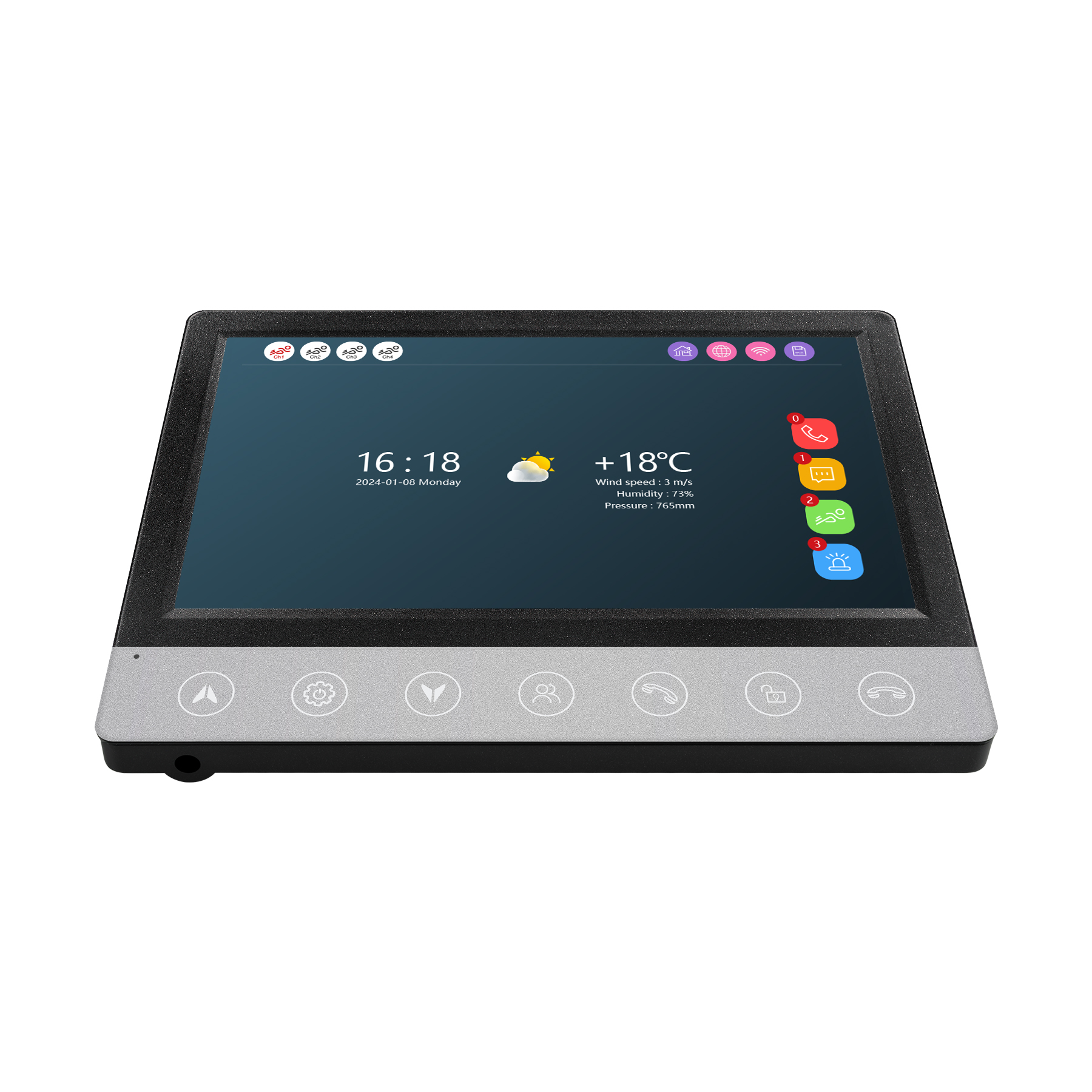

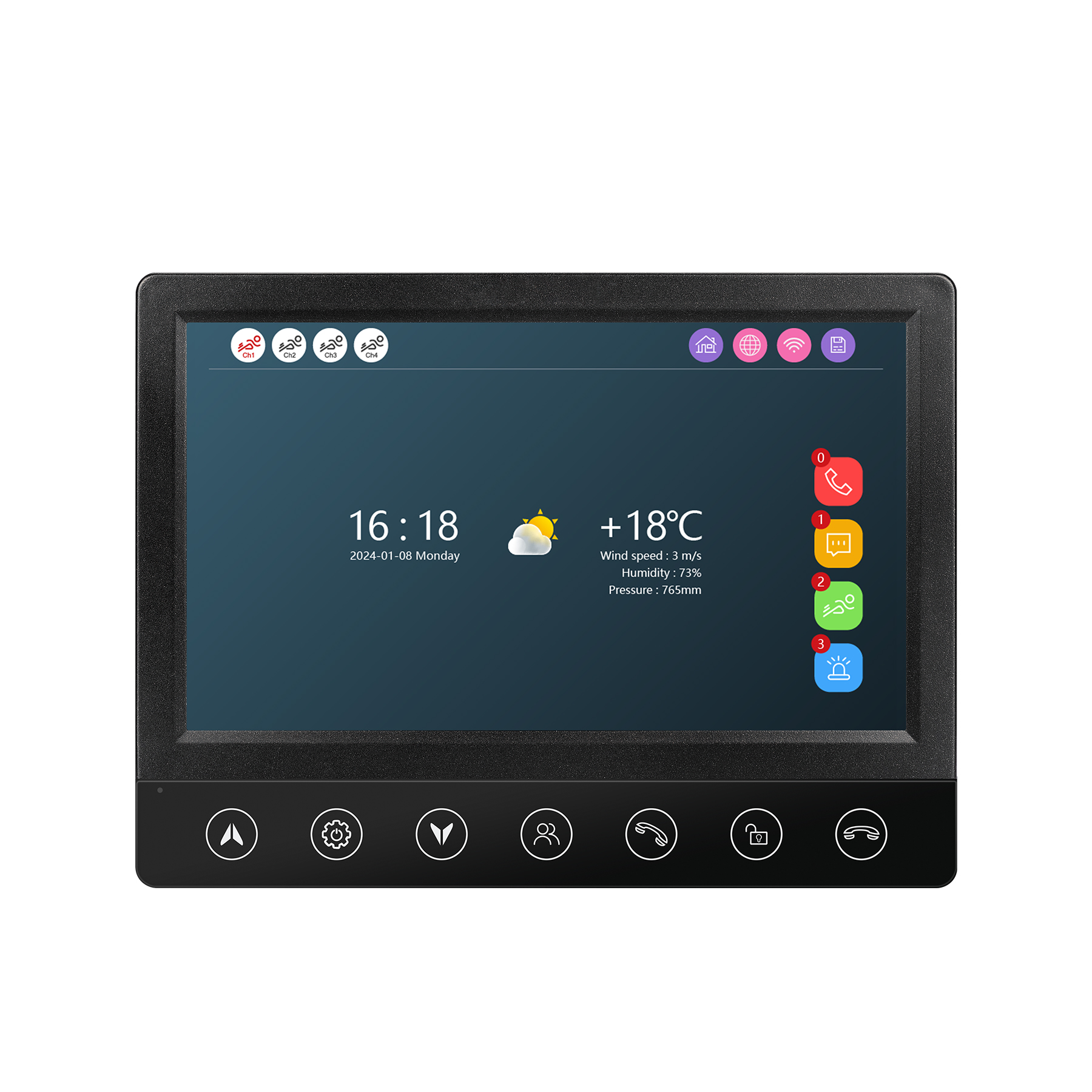

| Display | 7-inch IPS |
| Button Type | Sensor button |
| Screen Resolution | 1024 x 600 |
| Audio Compression | G.711a; G.711u |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in speaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Mode | Half duplex talk |
| Interface | |
| Door Station Interface | 2 |
| CCTV Camera Interface | 2 |
| Extension Interface | 2 |
| Gate Lock | 1 |
| Video Output | 1 |
| Network Interface | 1 |
| Power Interface | 1 |
| Storage | MicroSD card,max. 1TB |
| General | |
| Power | 12 VDC/2A; Built-in power supply:AC100-240V (Optional) |
| Power Consumption | Standby≤1.8W,Working≤3W |
| Working Temperature | -10℃ ~ 50℃ |
| Relative Humidity | 20%-95%(RH) |
| Certifications | CE;RED;RoHS |
| Material | ABS plastic |

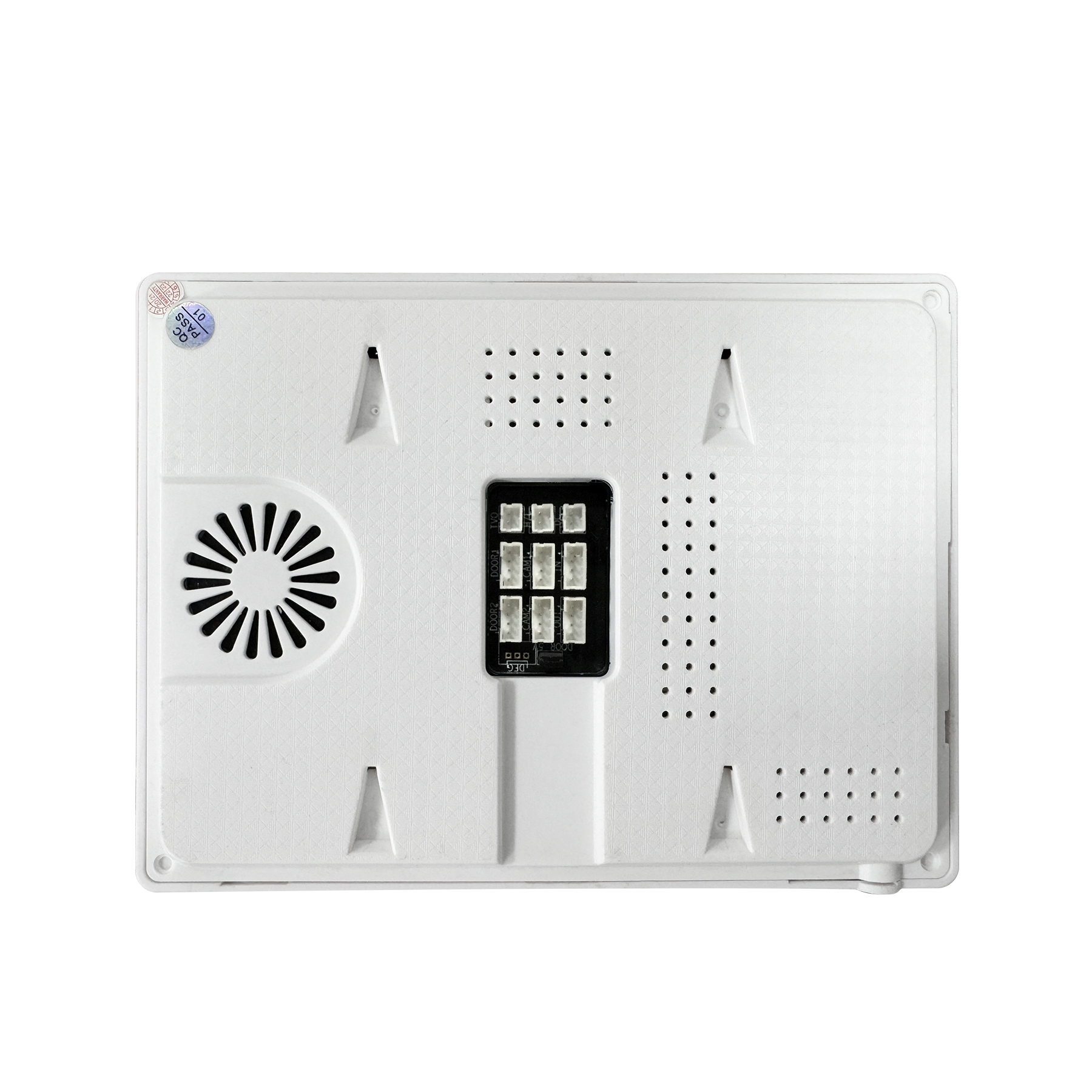

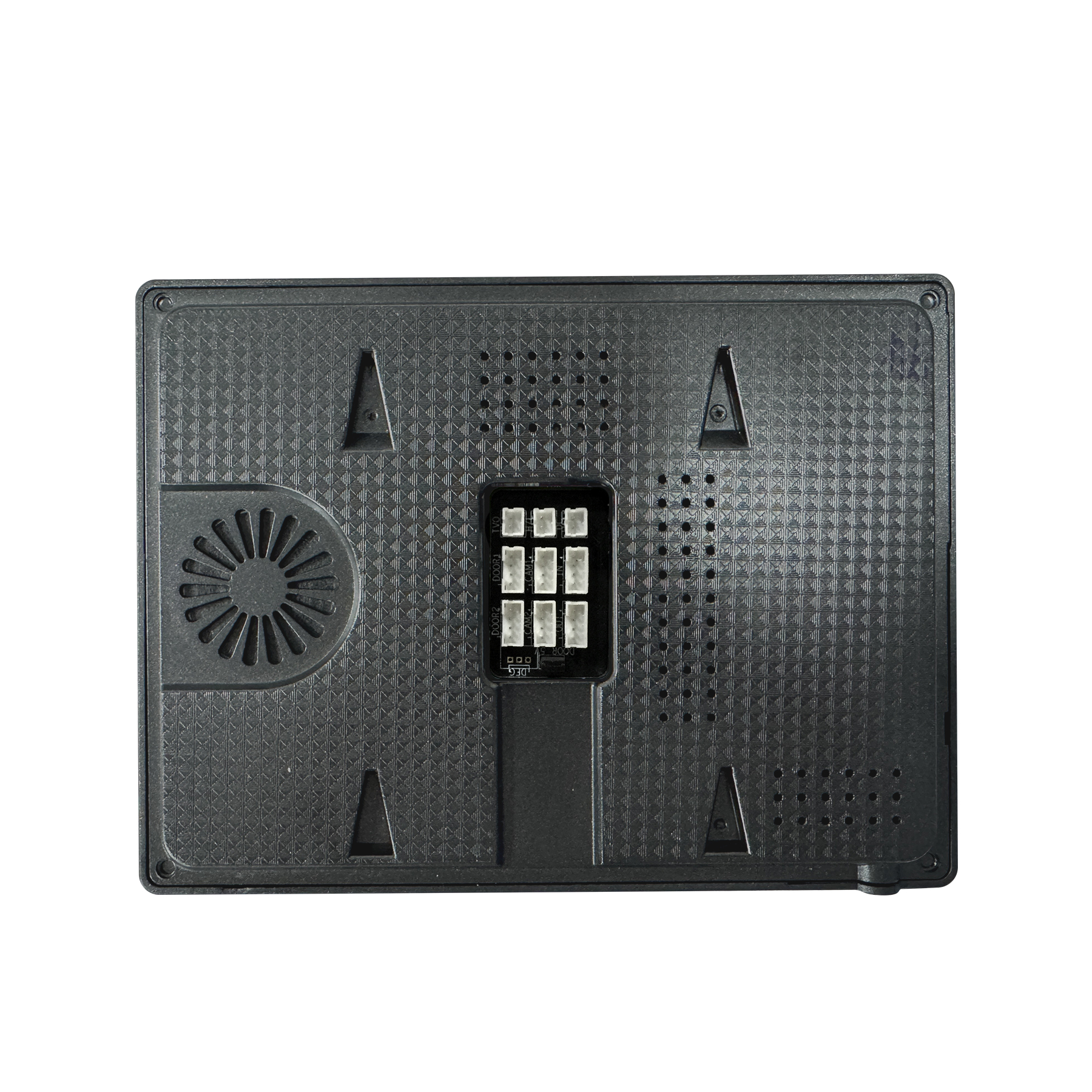

| Installation | Surface mounting |
| Dimensions | 178.5*134*16.5mm |
| Language | English, Russian, Ukrainian, German, Arabic (customizable) |
