· 4-Wire installation.
· Internal call and call transfer functionality.
· External locking mechanism.
· Video output capability.
· Do not disturb mode activation.
· Maximum capacity of 2 door stations and 6 indoor monitors.
| Basic | |
| Display | 4.3-inch TFT screen |
| Button Type | Sensor button |
| Screen Resolution | 480 x 272 |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in speaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Mode | Half duplex talk |

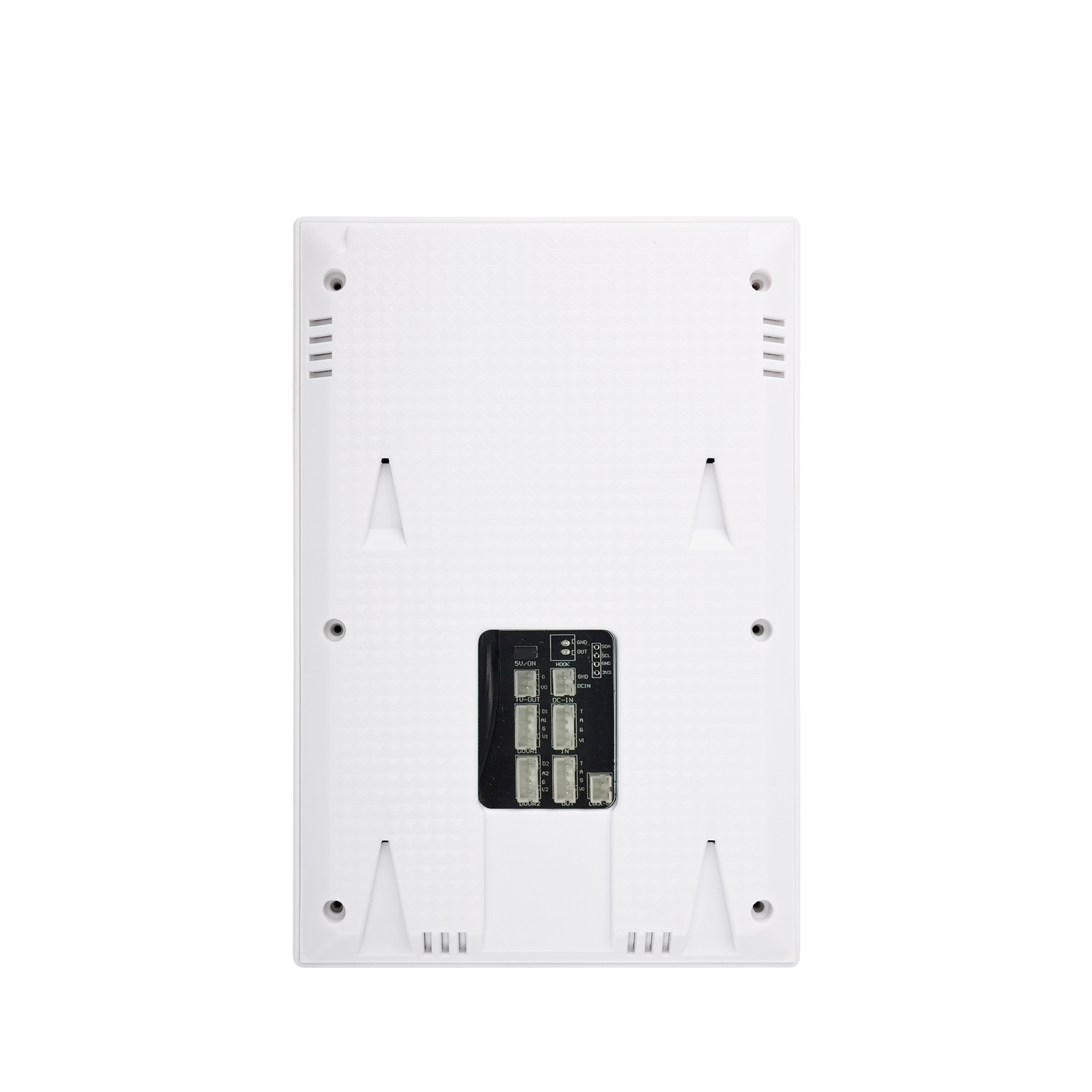

| Interface | |
| Door Station Interface | 2 |
| Extension Interface | 2 |
| Gate Lock | 1 |
| Video Output | 1 |
| Power Interface | 1 |
| General | |
| Power | 12 VDC/1A; Built-in power supply:AC100-240V (Optional) |
| Power Consumption | Standby≤1.2W,Working≤2.4W |
| Working Temperature | -10℃ ~ 50℃ |
| Relative Humidity | 20%-95%(RH) |
| Certifications | CE;RED;RoHS |
| Material | ABS plastic |
| Installation | Surface mounting |
| Dimensions | 175.5*118*14.5mm |
| Language | English, Russian(customizable) |
