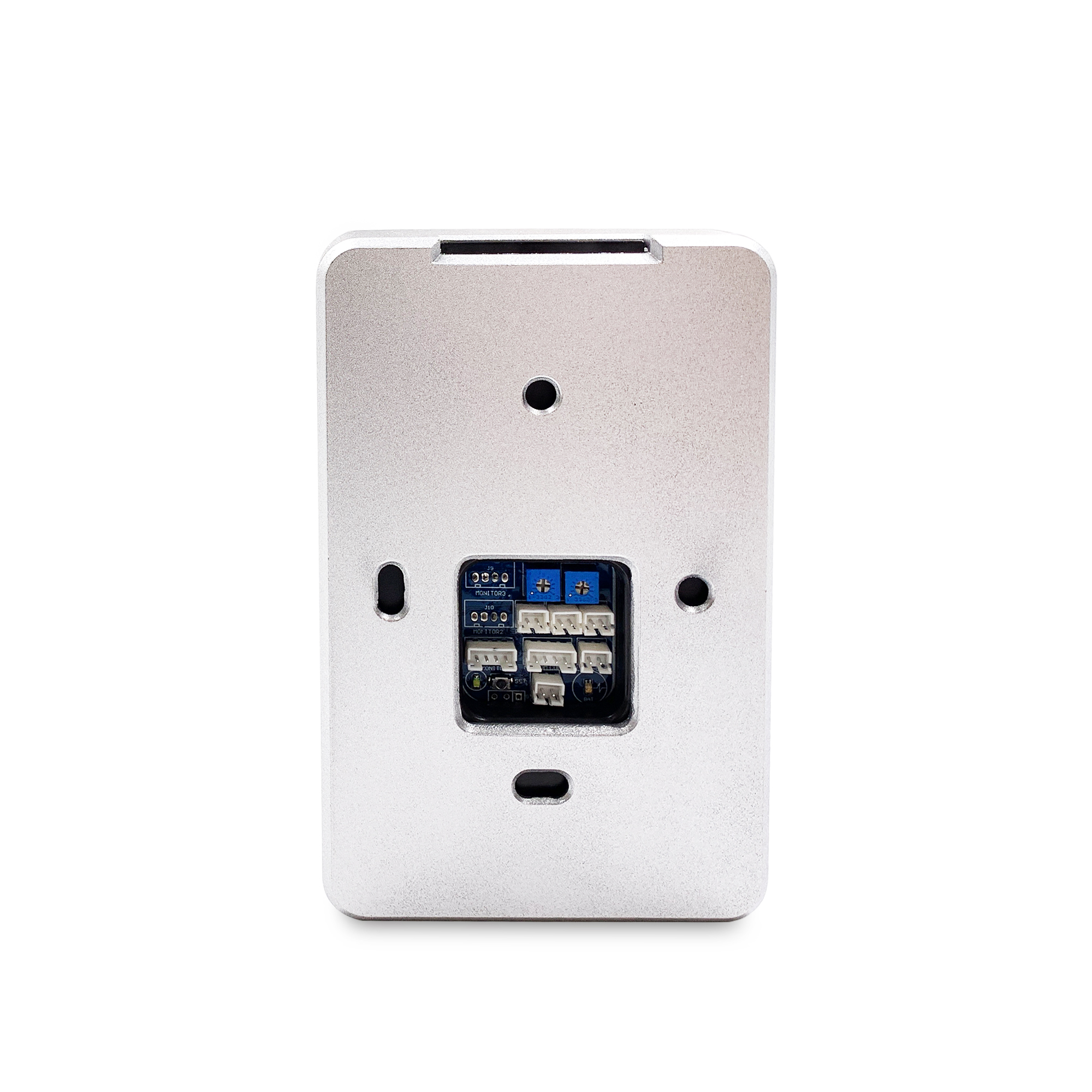

· 2-wire installation.
· 2MP HD camera with IR supplement.
· Remote unlock via the Tuya app .
· Door release via password & RFID. · Supports 2 locks.
· Aluminum alloy, nice industry design, IP55.
| System | |
| Operation System | Embedded LINUX OS |
| Protocol | TCP/IP |
| CPU | Embedded ARM micro processor |
| Video | |
| Image Sensor | 1/2.9”2MP CMOS |
| Lens | 2 mm |
| Resolution | 1920 x 1080 |
| Angle of View | H:120°,V:90°,D:148° |
| Supplement Light | IR supplement |
| Video Compression | H.264 |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in speaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Mode | Two-way talk |
| Interface | |
| Lock Control | 2 |
| Exit Button | 2 |
| BUS Interface | 1 |
| General | |
| Keypad | Touch button |
| Reader | Mifare reader(13.56 MHz) |
| Card Capacity | 200 |
| Password | 200 |
| Installation | Surface |
| Material | Aluminum |
| Power | 24 VDC/1.5A |
| Power Consumption | Standby≤2.4W,Working≤4.8W |
| Protective Level | IP55 |
| Working Temperature | -20℃ ~ 50℃ |
| Relative Humidity | 20%-95%(RH) |
| Dimensions | 142*91*42mm |
